SKF - Deep Groove Ball Bearing

30 x 62 x 16
Stock Code:
6206-NR_SKF
$22.22 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6206 NR

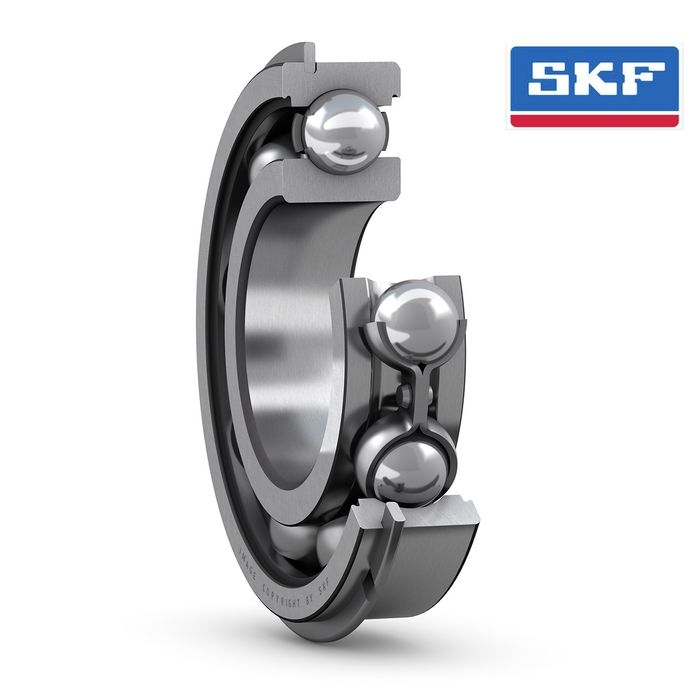

Deep groove ball bearing with snap ring
Single row deep groove ball bearings with a snap ring groove are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The snap ring, fitted in an annular groove in the outer ring, facilitates axial location of the bearings within their housings.
  • Snap ring facilitates axial location within housing
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

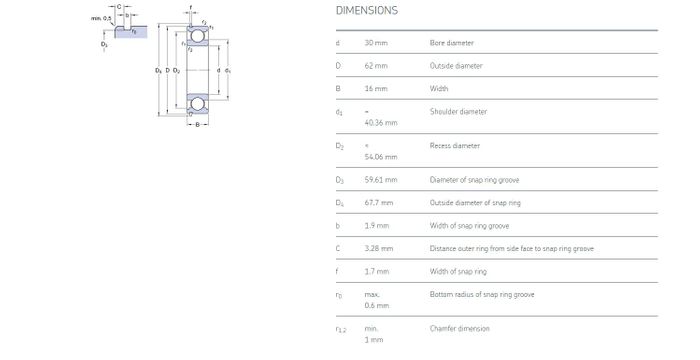

Dimensions

Bore diameter30 mm
Outside diameter62 mm
Width16 mm

Performance

Basic dynamic load rating20.3 kN
Basic static load rating11.2 kN
Reference speed24 000 r/min
Limiting speed15 000 r/min
SKF performance classSKF Explorer

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringSnap ring (fitted)
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout


Click here for catalogue information

View product table

Product Guide Attached


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    30 mm
  • Material:
    Chrome steel
  • Width:
    16 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Open
  • Diameter Outside:
    62 mm
  • Style:
    Snap ring groove with snap ring
