SKF - UNIT BEARING - GRUB SCREW - STAND SEAL

30 X 62 X 30.2 / 18 (YAT 206)

Stock Code:

YAT206_SKF

$40.89 incl GST

Stock Locations

Ballarat:

13 In Stock
Shepparton:

1 In Stock

10 On Order

Make an Enquiry

Add to Favourites

Description

YAT 206

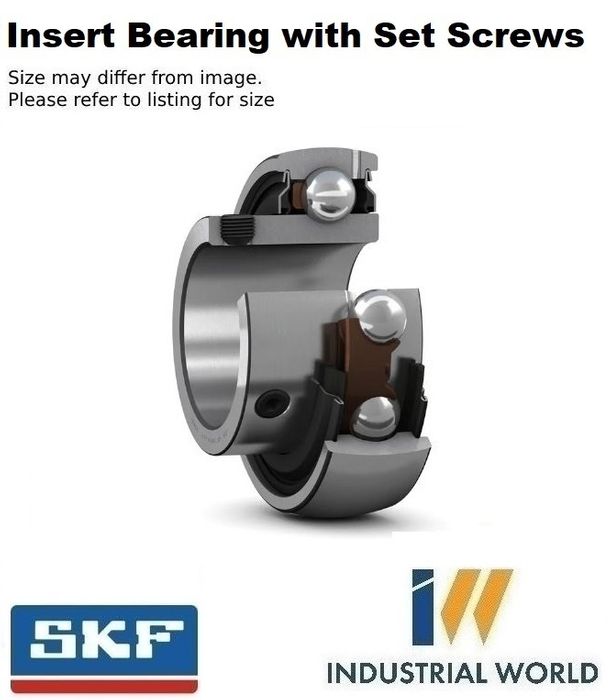

Insert bearing with set screws locking and narrow inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Dimensions

Bore diameter	30 mm
Outside diameter	62 mm
Width, total	30.2 mm
Width, inner ring	30.2 mm
Width, outer ring	18 mm

Properties

Retaining feature, inner ring	Set screws
Bore type	Cylindrical
Rolling elements	Balls
Outer ring type	Spherical
Inner ring extension	On one side
Cage	Non-metallic
Rubber seating ring	Without
Material, bearing	Bearing steel
Coating	Without
Sealing	Seal on both sides
Sealing type	Contact, standard
Lubricant	Grease
Relubrication feature	With
