SKF UNIT BEARING - LOCK COLLAR H/D - FLINGER SEAL

1-1/4IN (31.75) X 72 X 37.6 / 19
Stock Code:
YEL207-104-2F_SKF
$51.78 incl GST

Stock Locations

  • Ballarat:
    64 In Stock
  • Shepparton:
    3 In Stock
Make an Enquiry
Add to Favourites

Description

YEL 207-104-2F

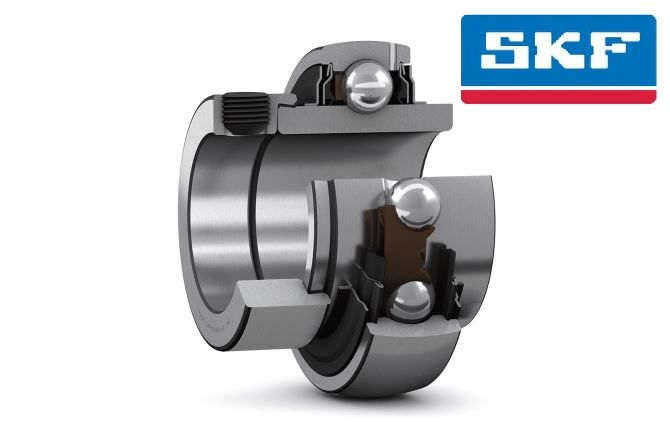

Insert bearing with an eccentric locking collar and extended inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Bore diameter31.75 mm
Outside diameter72 mm
Width, total51.1 mm
Width, inner ring37.6 mm
Width, outer ring19 mm

Performance

Basic dynamic load rating25.5 kN
Basic static load rating15.3 kN
Limiting speed5 300 r/min
NoteLimiting speed with shaft tolerance h6

Properties

Retaining feature, inner ringEccentric collar
Bore typeCylindrical
Rolling elementsBalls
Outer ring typeSpherical
Inner ring extensionOn both sides
CageNon-metallic
Rubber seating ringWithout
Material, bearingBearing steel
CoatingWithout
SealingSeal and flinger on both sides
Sealing typeContact, standard
LubricantGrease
Relubrication featureWith

Logistics

Product net weight0.596 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

View product table

Product Guide Attached.


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    31.75 mm (1-1/4)
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial - Bore
  • Type:
    Sealed single lip with flinger
  • Size:
    207
  • Diameter Outside:
    72 mm
  • Style:
    Standard
