SKF UNIT BEARING - LOCK COLLAR H/D - FLINGER SEAL

1-1/2IN (38.1) X 80 X 42.8 / 21
Stock Code:
YEL208-108-2F_SKF
$62.92 incl GST

Stock Locations

  • Ballarat:
    39 In Stock
  • Shepparton:
    Special Order
20 On Order
Make an Enquiry
Add to Favourites

Description

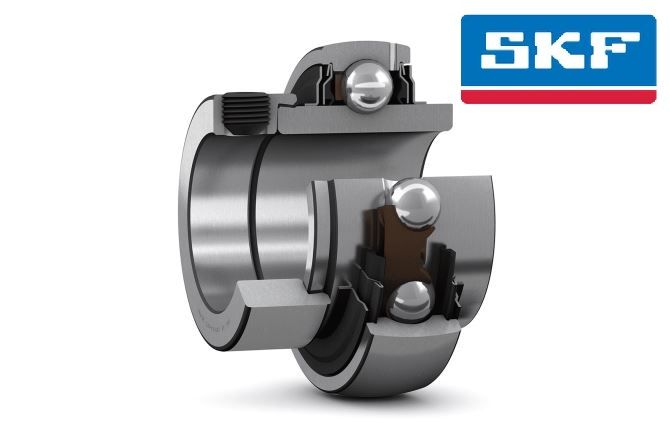

YEL 208-108-2F
Insert bearing with an eccentric locking collar and extended inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Bore diameter38.1 mm
Outside diameter80 mm
Width, total56.3 mm
Width, inner ring42.8 mm
Width, outer ring21 mm

Performance

Basic dynamic load rating30.7 kN
Basic static load rating19 kN
Limiting speed4 800 r/min
NoteLimiting speed with shaft tolerance h6

Properties

Retaining feature, inner ringEccentric collar
Bore typeCylindrical
Rolling elementsBalls
Outer ring typeSpherical
Inner ring extensionOn both sides
CageNon-metallic
Rubber seating ringWithout
Material, bearingBearing steel
CoatingWithout
SealingSeal and flinger on both sides
Sealing typeContact, standard
LubricantGrease
Relubrication featureWith

Logistics

Product net weight0.734 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

View product table

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    38.10 mm (1-1/2)
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial - Bore
  • Type:
    Sealed single lip with flinger
  • Size:
    208
  • Diameter Outside:
    80 mm
  • Style:
    Standard
