STAINLESS STEEL BEARING

Stock Code:
UC208-S6_FYH
$177.43 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

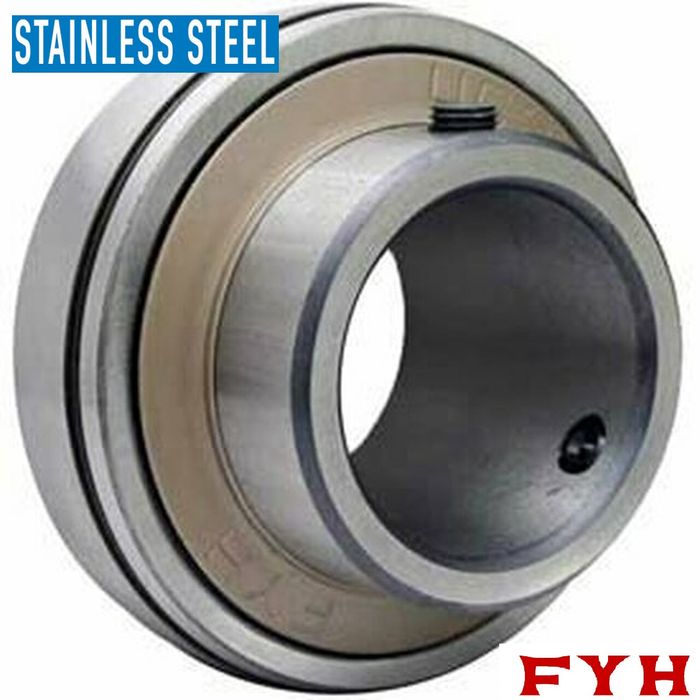

UC208-S6 FYH

Stainless Steel Wide Inner Ring Bearing w/ Grub Screw - Metric

  • Ball bearing insert.
  • Stainless Steel.
  • Cylindrical Bore w/ Grub Screw.

About Wide Inner Ring Bearing

  • Commonly used ball bearings designed for installation into the corresponding wide inner ring housings.
  • This range is well known for its versatility between bearing and housing options as well as ease of installation.
  • Wide inner ring insert bearings also distributes the load over the larger surface area created by the wider inner ring.
  • These bearings are generally used for heavier duty applications.

Specifications

  • C (in) 0.827
  • D (in) 3.15
  • b (mm) 49.2
  • S (mm) 19
  • Shaft Diameter (mm) 40
  • S2 (in)0.315
  • Basic Load Rating C0r (kn) 17.8
  • R Min (mm) 1.1
  • C1 (in) 0.236
  • Bore Diameter 40 mm
  • S2 (mm) 8
  • C1 (mm) 6
  • Set Screw Brg. Bore G (in)?
  • S1 (in) 1.189
  • Basic Load Rating Cr (kn) 29.1
  • Factor f014
  • B (in) 1.937
  • D (mm) 80
  • S1 (mm) 30.2
  • C (mm) 21
  • Set Screw Brg. Bore G (mm) M8 x 1
  • S (in) 0.748
  • R Min (in) 0.043
  • Type Ball Bearing
  • System of Measurement Metric
  • Material Stainless Steel
FYH

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    40 mm
  • Material:
    Stainless Steel
  • Width:
    21 / 49.2 mm
  • Brand:
    FYH
  • Metric/Imperial:
    Metric
  • Type:
    Sealed
  • Size:
    208
  • Diameter Outside:
    80 mm
  • Style:
    Stainless & Food Grade Grease
