STAINLESS STEEL BEARING

Stock Code:
UC204-S6_FYH
$67.55 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

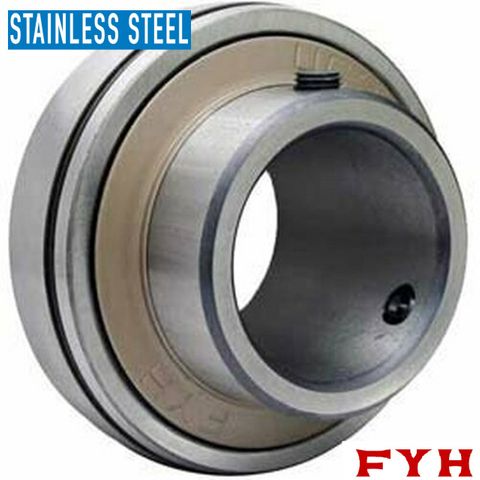

UC204-S6

Stainless Steel Bearing

Stainless Steel Wide Inner Ring Bearing Cylindrical Bore w/ Grub Screw - Metric

  • Ball bearing insert.
  • Stainless Steel.
  • Cylindrical Bore w/ Grub Screw.

About Wide Inner Ring Bearing

  • Commonly used ball bearings designed for installation into the corresponding wide inner ring housings.
  • This range is well known for its versatility between bearing and housing options as well as ease of installation.
  • Wide inner ring insert bearings also distributes the load over the larger surface area created by the wider inner ring.
  • These bearings are generally used for heavier duty applications.

Specifications

  • Model Number SSUC204/FYH
  • C (in) 0.63
  • D (in) 1.85
  • b (mm) 31
  • S (mm) 12.7
  • Shaft Diameter (mm) 20
  • S2 (in) 0.197
  • Basic Load Rating C0r (kn) 6.65
  • R Min (mm) 1
  • C1 (in) 0.157
  • Bore Diameter 20 mm
  • S2 (mm) 5
  • C1 (mm) 4
  • Set Screw Brg. Bore G (in) ?
  • S1 (in) 0.72
  • Basic Load Rating Cr (kn) 12.8
  • Factor f013.2
  • B (in) 1.22
  • D (mm) 47
  • S1 (mm) 18.3
  • C (mm) 16
  • Set Screw Brg. Bore G (mm) M6 x 0.75
  • S (in) 0.5
  • R Min (in) 0.039
  • Type Ball Bearing
  • System of Measurement Metric
  • Material Stainless Steel
FYH

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    20 mm
  • Material:
    Stainless Steel
  • Width:
    16 / 31 mm
  • Brand:
    FYH
  • Metric/Imperial:
    Metric
  • Type:
    Sealed
  • Size:
    204
  • Diameter Outside:
    47 mm
  • Style:
    Stainless & Food Grade Grease
