SKF UNIT BEARING - LOCK COLLAR H/D - FLINGER SEAL

30 X 62 X 36.5 / 18 VL065 = ZINC PLATED
Stock Code:
YEL206-2RF/VL065_SKF
$112.86 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

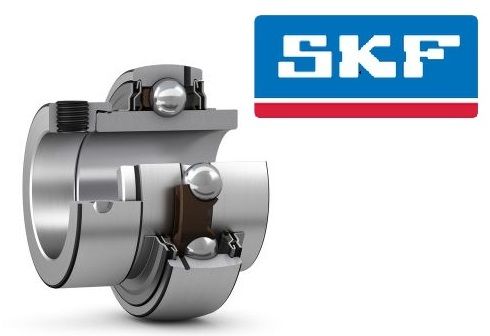

YEL 206-2RF/VL065
Insert bearing with an eccentric locking collar and extended inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Bore diameter30 mm
Outside diameter62 mm
Width, total48.4 mm
Width, inner ring36.5 mm
Width, outer ring18 mm

Performance

Basic dynamic load rating19.5 kN
Basic static load rating11.2 kN
Limiting speed3 800 r/min
NoteLimiting speed with shaft tolerance h6

Properties

Retaining feature, inner ringEccentric collar
Bore typeCylindrical
Rolling elementsBalls
Outer ring typeSpherical
Inner ring extensionOn both sides
CageNon-metallic
Rubber seating ringWithout
Material, bearingBearing steel
CoatingZinc-coated inner ring bore and side faces
SealingSeal and flinger on both sides
Sealing typeContact, multiple
LubricantGrease
Relubrication featureWith

Logistics

Product net weight0.371 kg
eClass code23-05-08-02
UNSPSC code31171536

Click here for catalogue information

View product table

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    30 mm
  • Material:
    Zinc Coated Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Super-Agri seals (rubber tiped flinger)
  • Size:
    206
  • Diameter Outside:
    62 mm
  • Style:
    Standard
