MITUTOYO DIGITAL VERNIER CALIPER 0-200MM 0-8INCH

COOLANT PROOF IP67 MET & IMP GRAD 0.01MM
Stock Code:
500-753-20
$448.18 incl GST

Stock Locations

  • Ballarat:
    3 In Stock
  • Shepparton:
    1 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

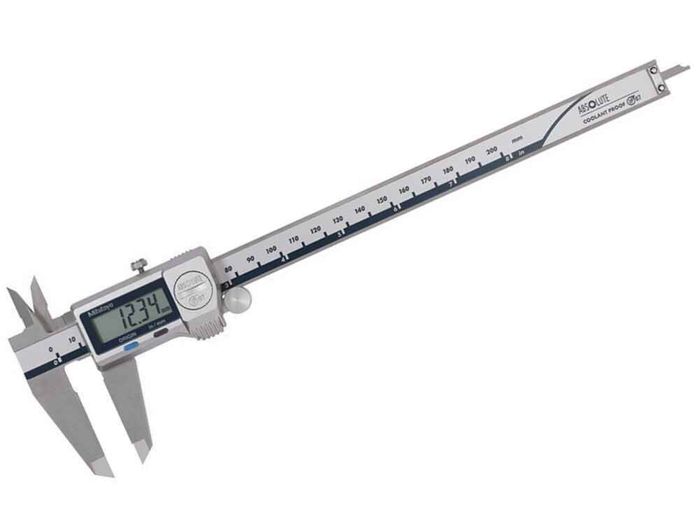

MITUTOYO DIGITAL VERNIER CALIPER 0-200MM 0-8INCH

Specifications

  • Range: 0-8″/200mm
  • Resolution: .0005″/.01mm
  • Accuracy: +/- 0.001″
  • Repeatability: .0005″/.01mm
  • Remarks: Without SPC data output

The Mitutoyo ABSOLUTE coolant proof caliper delivers highly accurate, four-way measurement capabilities ideal for shop floor use. Measurements are shown on a larger, impact-resistant digital display.

The Mitutoyo ABSOLUTE coolant proof caliper delivers accurate, repeatable outside dimension, inside dimension, depth and step measurements with accuracy and unrestricted speed in an ergonomic design. The caliper’s slide and jaws are constructed of hardened stainless steel and  provide an impact-resistant, easy-to-ready LCD display for durable, reliable use. The ABSOLUTE caliper can be used in workshop conditions exposed to coolant, water, dust and oil.

Features & Benefits

  • Available in Metric and Inch/Metric models
  • Available with or without SPC output capabilities
  • Character height on the LCD display increased from 7.4mm to 9.0mm for improved readability
  • Redesigned battery cover eliminates the need for a screwdriver
  • ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
  • Origin reset is not required even when data is re-displayed after loss due to insufficient illumination during use
  • Stainless steel construction protects caliper components and ensures accurate performance for longer duration
  • SPC output function allows for quick and easy data management in real time
  • Functions include Auto On/Off, Origin Set, Zero-Setting, Data Output and inch/mm conversion (on inch/metric models only)
  • Alarm: Counting value composition error
  • IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
  • Unnecessary to wipe or clean the scale

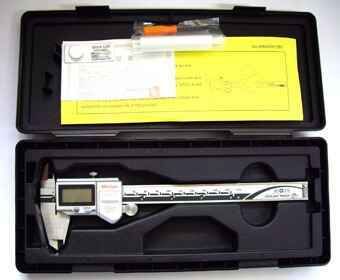

  • Supplied in a fitted plastic case

 Series 500 Technical Data

Technology: Digimatic

Max Response Speed: Unlimited

Display: LCD

Battery: SR44 (1PC) 938882

Battery life: Approx. 5 years under normal use

Length Standard: ABSOLUTE electromagnetic induction type

Optional Accessories: 959143, 959149, 959150
