MITUTOYO DIGITAL PROTRACTOR RANGE 0-360DEG

GRADUATION 0.1 DEG
Stock Code:
950-317
$830.59 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

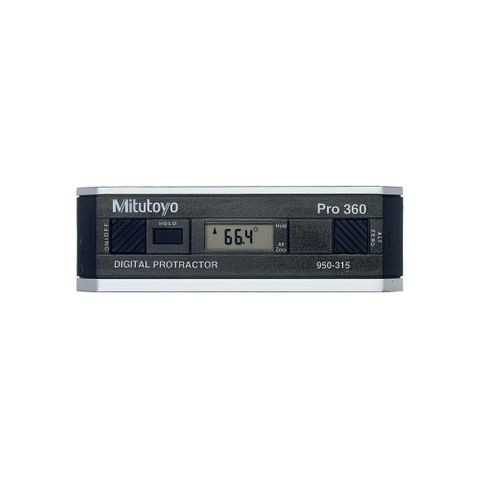

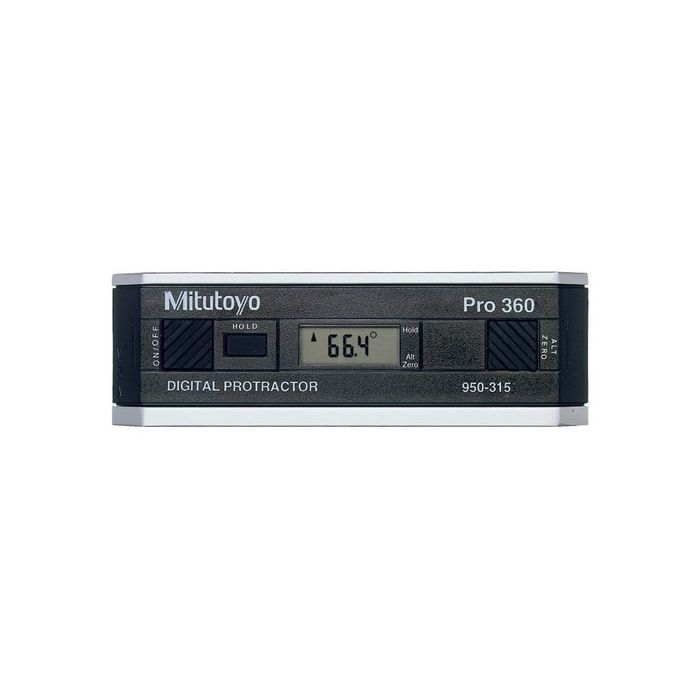

950-317 Mitutoyo Pro 360 Digital Protractor: 360° (90° x4)

Specifications:

  • Range: 360° (90°x4)
  • Resolution: 0.1°
  • Accuracy: +/- 0.1° Level +/- 10°, Plumb +/-10° +/-0.2° Maximum error
  • Repeatability: +/-0.1°
  • Cross Axis Error: Minimal
  • Battery Life: 500 Hrs. Standard 9-Volt Battery
  • Temperature Operation Storage: -5°C to 50°C (23° to 122°F) -20°C to 65°C (-4°F to 149°F)
  • Weight: 289g (10.2oz.)
  • Output: N/A
  • Standard Accessories: Plastic Case

Features:

  • Full 360° range (90° x 4).
  • Machined aluminum frame.
  • Alternate reference (zero).
  • Reading hold.
  • Simple calibration requiring no special fixtures.
  • Display remains upright to view at all angles. (950-317, Pro 360 Model).
  • RS232C output. (950-318 Pro 3600 Model).
  • Supplied in fitted carrying case.
