DIAL THICKNESS GAUGE A

Stock Code:
7301
$195.34 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

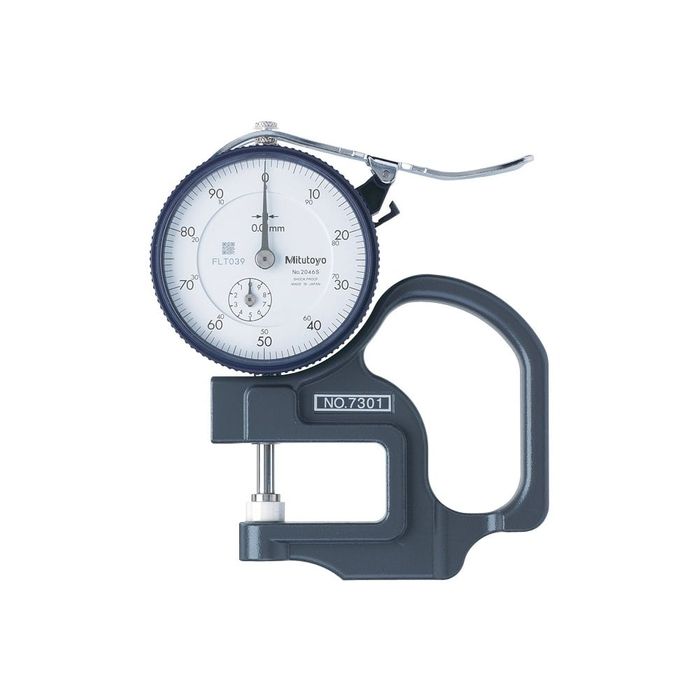

FLAT ANVIL DIAL THICKNESS GAGES – METRIC

The Mitutoyo flat anvil thickness gage quickly measures the thickness of different materials or objects with high accuracy. These gages are available with standard or deep-throated frames along with fine dial readings.

Specifications

  • Range: 0-10mm
  • Graduations: .01mm
  • Accuracy: +/- .015mm
  • Measuring Force: 1.4N or less
  • Remarks: Standard
  • Spindle/Anvil Material: Ceramic

Features & Benefits

The Mitutoyo flat anvil thickness gage measures the thickness of a wide range of materials and objects including film, wire, sheet metal and other similar materials. Our fine dial reading gages (7326S or 7327) are ideal for measuring the thickness of paper. The indicators’ contact points are coated with ceramic for durability and corrosion resistance. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy and the white dial face is easy to read.

  • Metric and Inch models available
  • Available with fine measurement dials
  • Available with deep-throated frames
  • White dial face for easier, precise measurement readings
  • Anvil and contact point are constructed of ceramic for better corrosion resistance
  • Measuring force is 1.4N or less
  • Crystal is glare-free with a scratch-resistant coating
  • Supplied in a fitted plastic case

Technical Data

Technology: Mechanical

Spindle Material: Ceramic

Anvil Material: Ceramic

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    MITUTOYO
