110 PIECES MET GREASE NIPPLES

Stock Code:
FD-6030-MET
$36.30 incl GST
$34.99 incl GST

Stock Locations

  • Ballarat:
    13 In Stock
  • Shepparton:
    Special Order
5 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

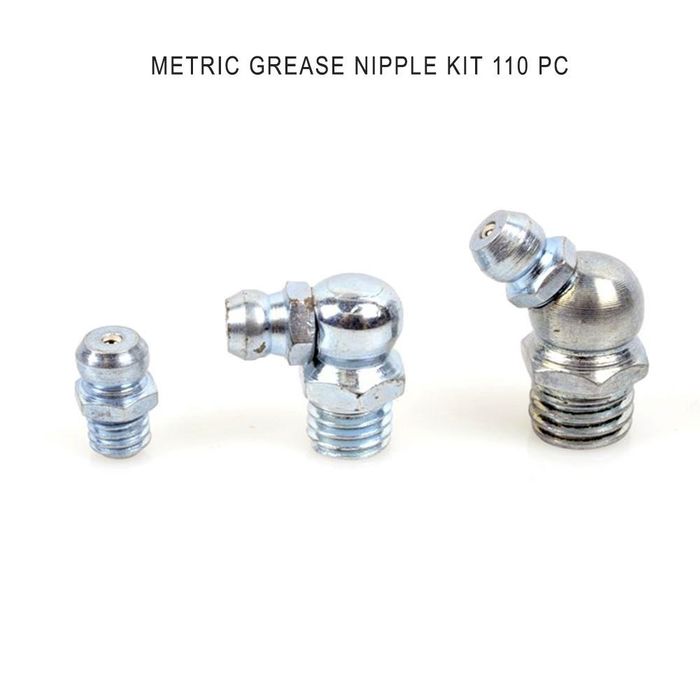

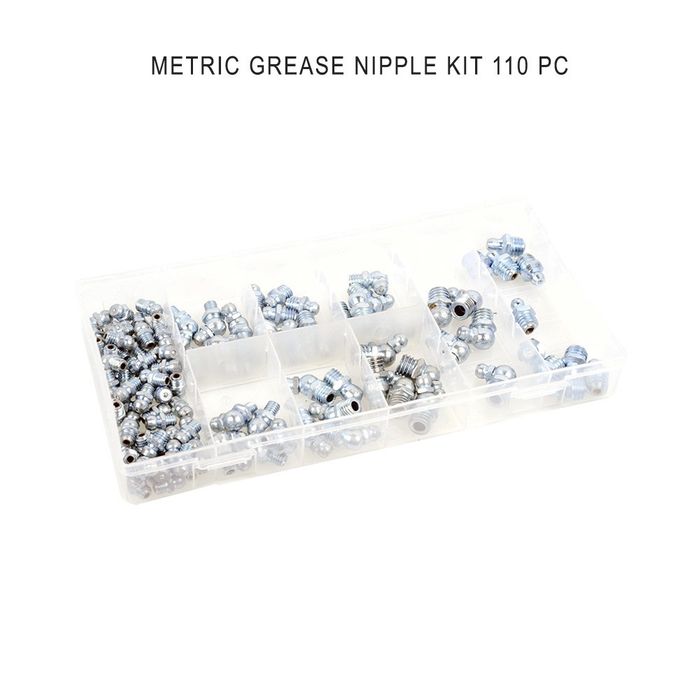

Eureka 110 PIECES MET GREASE NIPPLES

Grease nipples fittings are permanently installed by a threaded connection, leaving a nipple connection that a grease gun attaches to. The pressure supplied by the grease gun forces a small captive bearing ball in the fitting to move back against the force of its retaining spring. The arrangement is thus essentially a valve that opens under pressure to allow lubricant to pass through a channel and be forced into the voids of the bearing. When the pressure ceases, the ball returns to its closed position.

(60) M6 x 1

(5)  M6 x 1 45°

(5)  M6 x 1 90°

(10) M8 x 1.25

(5)  M10 x 1.5 45°

(5)  M8 x 1.25 90°

(10) M10 x 1.5

(5)  M10 X1.5 90°

(5)  M8 x 1.25 45°

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    Eureka
