Richmond - Stainless Steel Elite Plate Castor

75mm Poly Nylon Wheel 80kg with Brake
Stock Code:
S3382B
$98.91 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

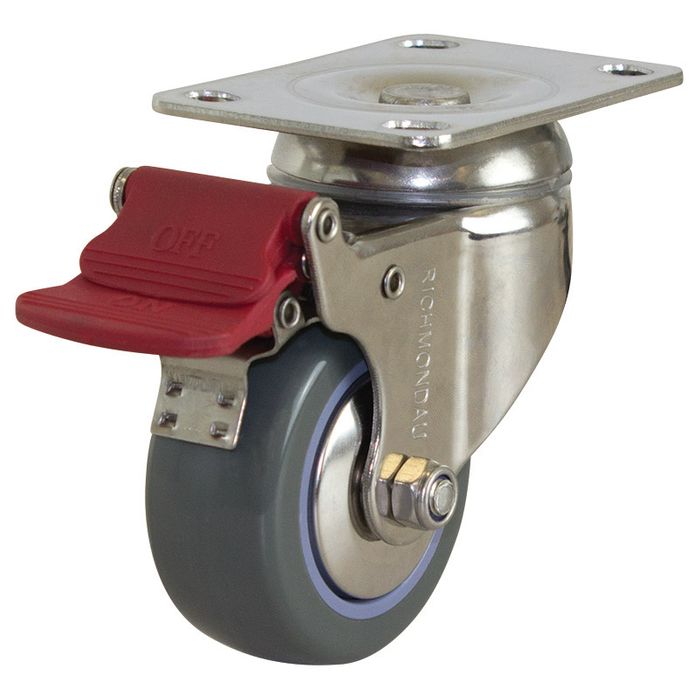

75mm Poly Nylon Wheel 80kg Capacity Castor (S3382B)

Wheel Diameter: 75mm

Castor Frame Type: Swivel with Brake

Wheel Width: 30mm

Wheel Type: Polyurethane

Wheel Code: PU3345

Wheel Bearing Type: Stainless Steel Ball Bearing

Castor Height: 107mm

Swivel Radius: 105mm

Maximum Load Capacity: 80kg

Recommended Load Capacity: 45kg

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

The S3382B from Richmond is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is one of our stainless steel elite plate range and can hold loads up to 80kg. The S3382B uses stainless steel ball bearings for wheel rotation and is baseplate mount. The swivel frame design of this castor allows the load to be steered. The polyurethane wheel diameter is 75mm, the wheel width is 30mm and can be ordered separately (PU3345). This model can also be ordered without a brake (part number S3382).

Details

  • Material:
    Poly - Grey / Nylon
  • Width:
    30 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 100 Kg - Stainless Elite Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    80 Kg
  • Diameter Outside:
    75 mm (3 inch)
  • Style:
    Stainless Steel
