Richmond - 1000 Series Swivel Castor

150mm Cast Iron Wheel 1000kg
Stock Code:
S6318
$224.75 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

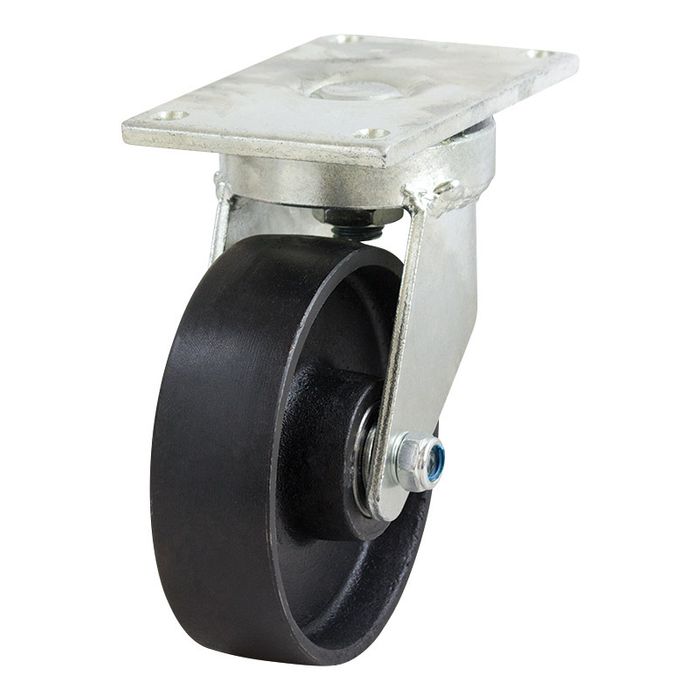

150mm Cast Iron Wheel 1000Kg Capacity Castor (S6318)

Wheel Diameter: 150mm

Castor Frame Type: Swivel

Wheel Width: 45mm

Wheel Type: Cast Iron

Wheel Code: Ci601

Wheel Bearing Type: Ball Bearing

Castor Height: 194mm

Swivel Radius: 130mm

Maximum Load Capacity: 1000kg

1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

The S6318 from Richmond is a swivel frame castor and has a cast iron wheel. This swivel castor is in our 1000 series range and can safely take loads up to 1000kg. The S6318 is assembled with ball bearings on the castors axle. This castors swivel frame permits the load to be steered. The overall cast iron wheel diameter is 150mm, the wheel width is 45mm and you can order separately (Part Number: Ci601).

Details

  • Material:
    Cast Iron
  • Width:
    45 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 1000 Kg - 1000 Series
  • Type:
    Swivel - Plate
  • Size:
    1000 Kg
  • Diameter Outside:
    150 mm (6 inch)
  • Style:
    Zinc Plated
