Richmond - Heavy Industrial Swivel Castor

150mm Poly Ci Wheel 500kg with Brake
Stock Code:
S6270B
$297.59 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

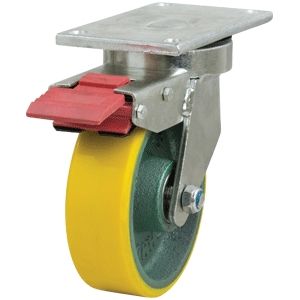

150mm Poly Ci Wheel 500Kg Capacity Castor (S6270SLB)

Wheel Diameter: 150mm

Castor Frame Type: Swivel with Swivel Lock and Brake

Wheel Width: 50mm

Wheel Type: Polyurethane

Wheel Code: PU649

Wheel Bearing Type: Ball Bearing

Castor Height: 194mm

Swivel Radius: 130mm

Maximum Load Capacity: 500kg

Recommended Load Capacity: 380kg

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

The S6270SLB manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a polyurethane tyred cast iron wheel. This swivel castor is part of our 500 series range and can safely take loads up to 500kg. The S6270SLB is assembled with ball bearings on the castors axle. The swivel frame of this castor allows full swivel rotation to enable steering. The polyurethane tyred cast iron wheel diameter is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU649).

Details

  • Material:
    Poly - Yellow / Cast Iron
  • Width:
    50 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 500 Kg - 500 Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    500 Kg
  • Diameter Outside:
    150 mm (6 inch)
  • Style:
    Zinc Plated
