Richmond - Stainless Steel Elite Plate Swivel Cast

100mm Nylon Wheel 100kg with Brake
Stock Code:
S4488B
$92.11 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

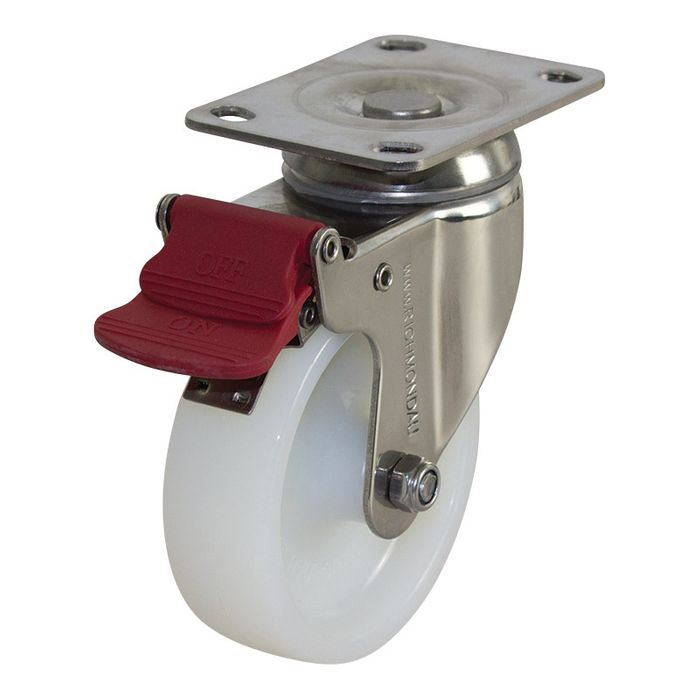

100mm Nylon Wheel 100kg Capacity Castor (S4488B)

Wheel Diameter: 100mm

Castor Frame Type: Swivel with Brake

Wheel Width: 30mm

Wheel Type: Nylon

Wheel Code: NY4417

Wheel Bearing Type: Plain Bore

Castor Height: 135mm

Swivel Radius: 106mm

Maximum Load Capacity: 100kg

Recommended Load Capacity: 80kg

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

The S4488B manufactured by Richmond is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is in our stainless steel elite plate range and can hold loads up to 100kg. The S4488B wheel is fitted with plain bearings and is mounted with the baseplate. The swivel frame of this castor allows full swivel rotation to enable steering. The nylon wheel diameter is 100mm, the wheel width is 30mm and can be ordered separately (NY4417). This model can also be ordered without a brake (part number S4488).

Details

  • Material:
    Nylon - White
  • Width:
    30 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 100 Kg - Stainless Elite Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    100 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Stainless Steel
