Richmond - Light Industrial Series Swivel Castor

100mm Inst Rubber Wheel 80kg with Brake
Stock Code:
S4425B
$53.37 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

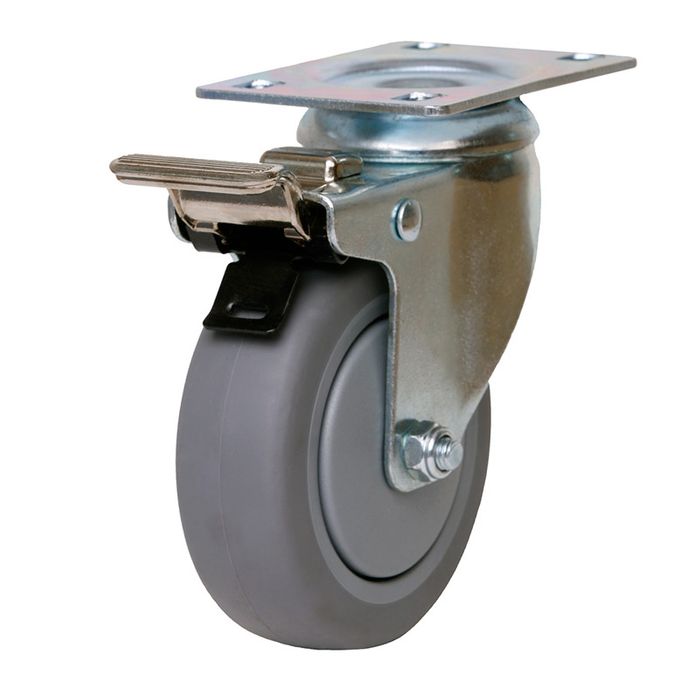

100mm Inst Rubber Wheel 80kg Capacity Castor (S4425B)

Wheel Diameter: 100mm

Castor Frame Type: Swivel with Brake

Wheel Width: 32mm

Wheel Type: Institutional Rubber

Wheel Code: IR4007

Wheel Bearing Type: Ball Bearing

Castor Height: 131mm

Swivel Radius: 110mm

Load Capacity: 80kg

Available with a large range of wheels each designed to suit varied floor surfaces, application and load requirements – Richmond’s Light Industrial Series castors are ideal for use on mobile equipment, hospital equipment, nurseries, shops and general industry. The light industrial series is the castor of choice or green grocers and market stalls for produce bins as it provides an economical hard wearing reliable castor. Combining a zinc plated corrosion resistant frame and a robust twin race swivel ensures a long and productive life.

The S4425B manufactured by Richmond is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is one of our light industrial series range and has a maximum capacity of 100kg. The S4425B is assembled with ball bearings on the castors axle. The swivel frame design of this castor allows the load to be steered. The outside diameter of the institutional rubber wheel is 100mm, the wheel width is 32mm and can be ordered separately (iR4007). This model can also be ordered without a brake (part number S4425).

Details

  • Material:
    Rubber - Grey / Nylon
  • Width:
    32 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 125 Kg - Light Industrial Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    80 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
