Richmond - Stainless Steel Plate Plate Swivel Cast

100mm Reb Poly Wheel 140kg
Stock Code:
S4144
$100.67 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

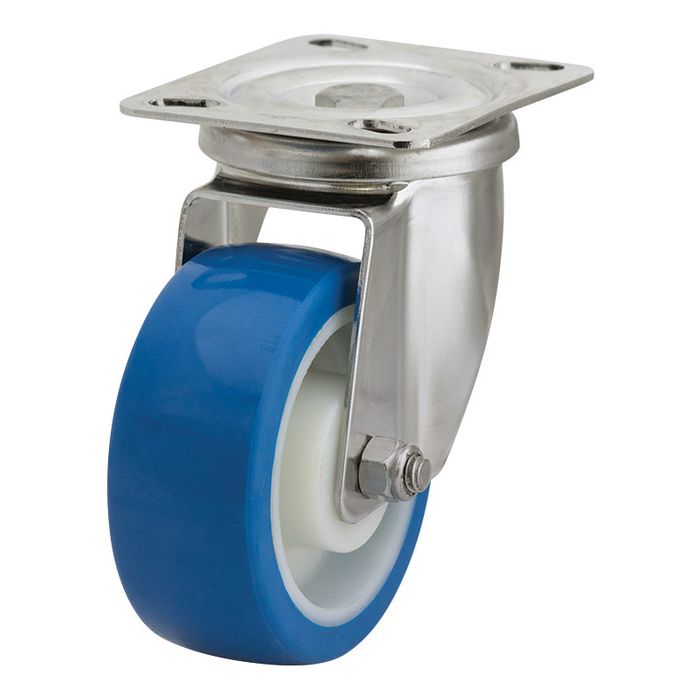

100mm Reb Poly Wheel 140kg Capacity Castor (S4144)

Wheel Diameter: 100mm

Castor Frame Type: Swivel

Wheel Width: 35mm

Wheel Type: Rebound Polyurethane

Wheel Code: RP4072

Wheel Bearing Type: Stainless Steel Roller Bearing

Castor Height: 133mm

Swivel Radius: 92mm

Maximum Load Capacity: 140kg

Recommended Load Capacity: 100kg

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

The S4144 from Richmond is a swivel frame castor and is fitted with a rebound polyurethane wheel. This swivel castor is one of our stainless steel excel plate range and has a top load capacity of 140kg. The S4144 is assembled with stainless steel roller bearings on the castors axle and is mounted with the baseplate. The swivel frame of this castor allows the castor to swivel 360°. The diameter of the rebound polyurethane wheel is 100mm, the wheel width is 35mm and can be ordered separately (RP4072). This model can also be ordered with a brake (part number S4144B).

Details

  • Material:
    Poly - Blue / Nylon
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 400 Kg - Stainless Excel Series
  • Type:
    Swivel - Plate
  • Size:
    140 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Stainless Steel
