Richmond - Utility Series Bolt Swivel Castor

75mm Nylon Wheel 50kg with Brake
Stock Code:
S3712B
$20.37 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

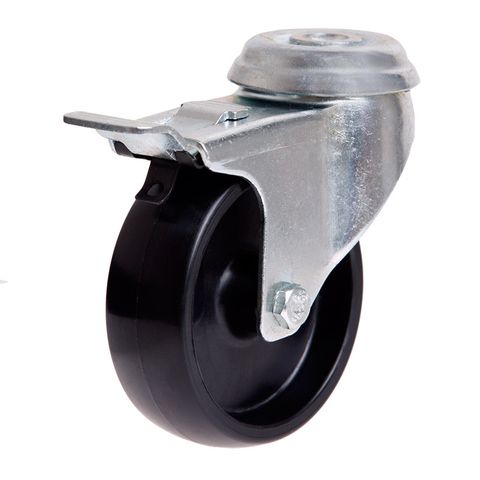

75mm Nylon Wheel 50kg Capacity Castor (S3712B)

Wheel Diameter: 75mm

Castor Frame Type: Swivel with Brake

Wheel Width: 25mm

Wheel Type: Nylon

Wheel Code: NY3324

Wheel Bearing Type: Plain Bore

Castor Height: 98mm

Swivel Radius: 85mm

Bolt Hole Size: 10mm



Maximum Load Capacity: 50kg

Recommended Load Capacity: 40kg

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.



The S3712B manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is part of our utility series range and has a maximum capacity of 50kg. The S3712B uses plain bearings for wheel rotation. The swivel frame allows the castor to swivel 360°. The nylon wheel diameter is 75mm, the wheel width is 25mm and can be ordered separately (NY3324). To order this castor without a brake, search for S3712.

Details

  • Thread Size:
    M10 Hole
  • Material:
    Nylon - Black
  • Width:
    25 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 70 Kg - Utility Series
  • Type:
    Swivel - Bolt Hole - Braked
  • Size:
    50 Kg
  • Diameter Outside:
    75 mm (3 inch)
  • Style:
    Zinc Plated
