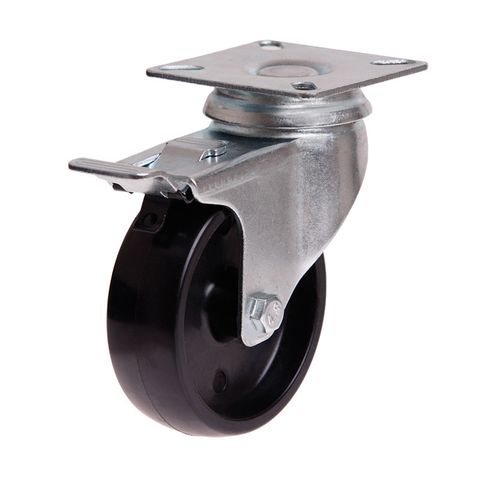

Richmond - Utility Series Plate Swivel Castor

75mm Nylon Wheel 50kg with Brake
Stock Code:
S3708B
$18.63 incl GST

Stock Locations

  • Ballarat:
    10 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

75mm Nylon Wheel 50kg Capacity Castor (S3708B)

Wheel Diameter: 75mm

Castor Frame Type: Swivel with Brake

Wheel Width: 25mm

Wheel Type: Nylon

Wheel Code: NY3324

Wheel Bearing Type: Plain Bore

Castor Height: 98mm

Swivel Radius: 85mm

Maximum Load Capacity: 50kg

Recommended Load Capacity: 40kg

Plate mounted, Richmond’s Utility Castor has endless light duty applications including wire baskets, display equipment and light trolley applications. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish. Together with the choice of nylon or grey non-marking wheels, this castor is truly a utility by name and nature , a must have for all small fabricating, retailers and home handy man purposes.



The S3708B manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is one of our utility series range and can safely take loads up to 50kg. The S3708B is assembled with plain bearings on the castors axle. The swivel frame design of this castor allows the castor to swivel 360°. The diameter of the nylon wheel is 75mm, the wheel width is 25mm and can be ordered separately (NY3324). This model can also be ordered without a brake (part number S3708).

Details

  • Material:
    Nylon - Black
  • Width:
    25 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 70 Kg - Utility Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    50 Kg
  • Diameter Outside:
    75 mm (3 inch)
  • Style:
    Zinc Plated
