Richmond - Utility Series Plate Swivel Castor

75mm Rubber Wheel 50kg
Stock Code:
S3710
$16.37 incl GST

Stock Locations

  • Ballarat:
    21 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

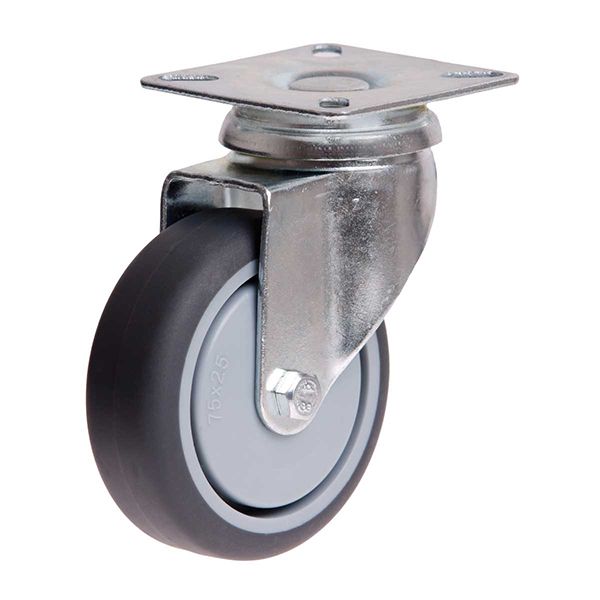

75mm Rubber Wheel 50kg Capacity Castor (S3710)

Wheel Diameter: 75mm

Castor Frame Type: Swivel

Wheel Width: 25mm

Wheel Type: Institutional Rubber

Wheel Code: IR3301

Wheel Bearing Type: Ball Bearing

Castor Height: 98mm

Swivel Radius: 65mm

Maximum Load Capacity: 50kg

Recommended Load Capacity: 40kg

Plate mounted, Richmond’s Utility Castor has endless light duty applications including wire baskets, display equipment and light trolley applications. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish. Together with the choice of nylon or grey non-marking wheels, this castor is truly a utility by name and nature , a must have for all small fabricating, retailers and home handy man purposes.

The S3710 from Richmond Wheel and Castor Co. is a swivel frame castor and has a institutional rubber wheel. This swivel castor is part of our utility series range and can safely take loads up to 50kg. The S3710 uses ball bearings for wheel rotation. The swivel frame of this castor allows the load to be steered. The institutional rubber wheel diameter is 75mm, the wheel width is 25mm and can be ordered separately (IR3301). For the same castor with a brake, see S3710B.



Details

  • Material:
    Rubber - Grey / Nylon
  • Width:
    25 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 70 Kg - Utility Series
  • Type:
    Swivel - Plate
  • Size:
    50 Kg
  • Diameter Outside:
    75 mm (3 inch)
  • Style:
    Zinc Plated
