Richmond - Stainless Steel Elite Plate Castor

75mm Nylon Wheel 80kg
Stock Code:
S3388
$73.00 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

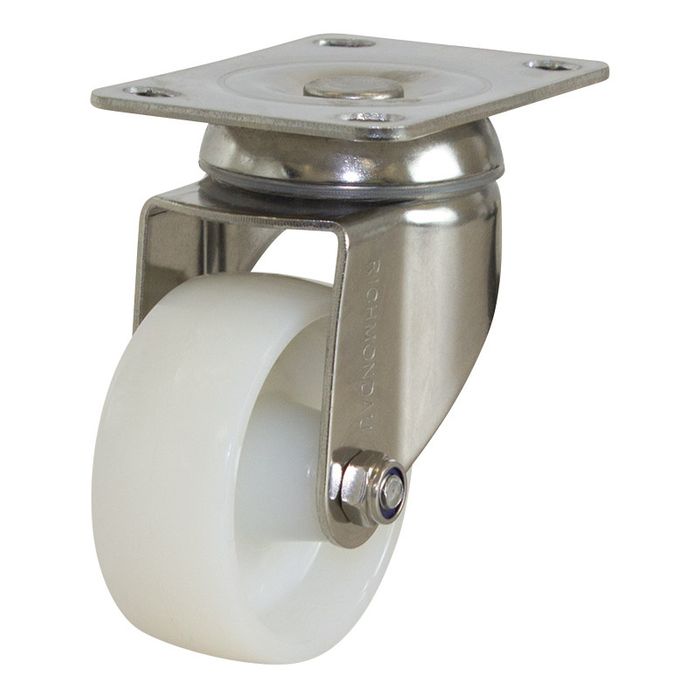

75mm Nylon Wheel 80kg Capacity Castor (S3388)

Wheel Diameter: 75mm

Castor Frame Type: Swivel

Wheel Width: 30mm

Wheel Type: Nylon

Wheel Code: NY3321

Wheel Bearing Type: Plain Bore

Castor Height: 107mm

Swivel Radius: 70mm

Maximum Load Capacity: 80kg

Recommended Load Capacity: 45kg

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

The S3388 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and has a nylon wheel. This swivel castor is one of our stainless steel elite plate range and has a top load capacity of 80kg. The S3388 wheel is fitted with plain bearings and is baseplate mount. This castors swivel frame allows the castor to swivel 360°. The nylon wheel diameter is 75mm, the wheel width is 30mm and you can order separately (Part Number: NY3321). To order this castor with a brake, search for S3388B.

Details

  • Material:
    Nylon - White
  • Width:
    30 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 100 Kg - Stainless Elite Series
  • Type:
    Swivel - Plate
  • Size:
    80 Kg
  • Diameter Outside:
    75 mm (3 inch)
  • Style:
    Stainless Steel
