Richmond - Utility Series Bolt Braked Swivel Casto

50mm Rubber Wheel 30kg
Stock Code:
S2714B
$14.85 incl GST

Stock Locations

  • Ballarat:
    24 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

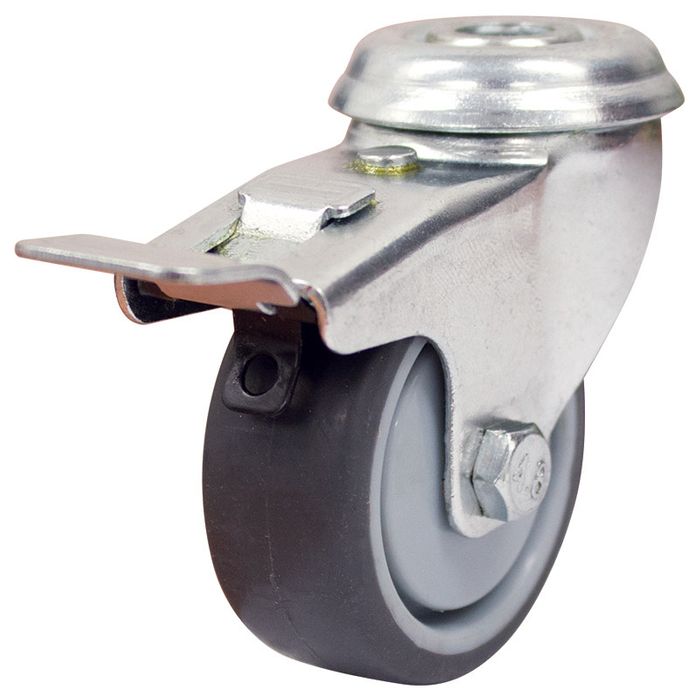

50mm Rubber Wheel 30kg Capacity Castor (S2714B)

Wheel Diameter: 50mm

Castor Frame Type: Swivel with Brake

Wheel Width: 20mm

Wheel Type: Institutional Rubber

Wheel Bearing Type: Ball Bearing

Castor Height: 68mm

Swivel Radius: 75mm

Bolt Hole Size: 10mm

Maximum Load Capacity: 30kg

Recommended Load Capacity: 20kg

Wheel Code: IR2201

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.The S2714B from Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is in our utility series range and has a maximum capacity of 30kg. The S2714B uses ball bearings for wheel rotation. The swivel frame design of this castor permits the load to be steered. The diameter of the institutional rubber wheel is 50mm, the wheel width is 20mm. This model can also be ordered without a brake (part number S2714).

Details

  • Thread Size:
    M10 Hole
  • Material:
    Rubber - Grey / Nylon
  • Width:
    20 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 70 Kg - Utility Series
  • Type:
    Swivel - Bolt Hole - Braked
  • Size:
    30 Kg
  • Diameter Outside:
    50 mm (2 inch)
  • Style:
    Zinc Plated
