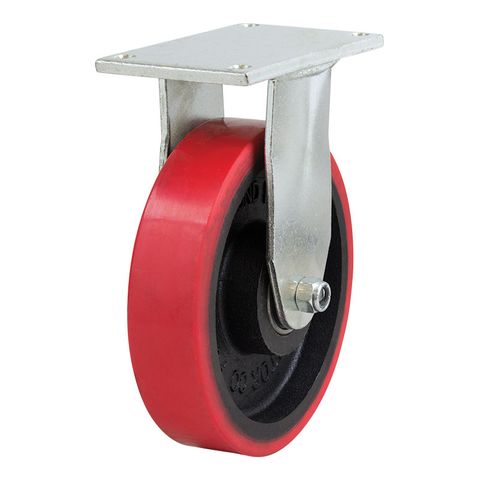

Richmond - 1000 Series Rigid Castor

200mm Poly Ci Wheel 1000kg
Stock Code:
R8069
$255.97 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

200mm Poly Ci Wheel 1000Kg Capacity Castor (R8069)

Wheel Diameter: 200mm

Castor Frame Type: Rigid

Wheel Width: 50mm

Wheel Type: Polyurethane

Wheel Code: PU876

Wheel Bearing Type: Ball Bearing

Castor Height: 248mm

Maximum Load Capacity: 1000kg

1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

The R8069 from Richmond Wheel and Castor Co. is a rigid frame castor and is fitted with a polyurethane tyred cast iron wheel. This rigid castor is in our 1000 series range and has a maximum capacity of 1000kg. The R8069 is assembled with ball bearings on the castors axle. This castors rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall polyurethane tyred cast iron wheel diameter is 200mm, the wheel width is 50mm and can be ordered separately (PU876).

Details

  • Material:
    Poly - Red / Cast Iron
  • Width:
    50 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 1000 Kg - 1000 Series
  • Type:
    Fixed
  • Size:
    1000 Kg
  • Diameter Outside:
    200 mm (8 inch)
  • Style:
    Zinc Plated
