Richmond - Waste Bin Rigid Castor

150mm SG Iron Wheel 500/400kg
Stock Code:
R6011
$66.20 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

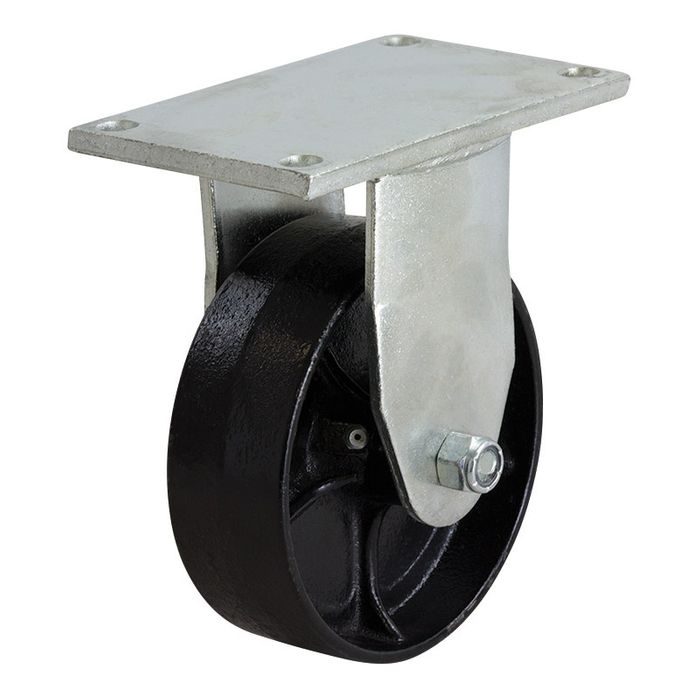

150mm SG Iron Wheel 500/400kg Capacity Waste Bin Castor (R6011)

Wheel Diameter: 150mm

Castor Frame Type: Rigid

Wheel Width: 50mm

Wheel Type: Spheroidal Graphite (SG) Iron

Wheel Code: SG608

Wheel Bearing Type: Plain Bore

Castor Height: 194mm

Swivel Radius: 130mm

Maximum Load Capacity: 500kg

Recommended Load Capacity: 400kg

Richmond Waste Bin Castors are the most recognised castors in the waste bin industry and used by all the leading waster providers because of their renowned strength, durability and longevity in a highly demanding application. With load capacities up to 500kg per castor we have developed and designed this castor with a high tensile steel kingpin, precision machined ball race and a welded swivel lock and brake. To make inventory and ordering easy, Richmond can supply waste bin castors in sets, comprising of 2 x swivel castors and 2 x rigid castors, as well as brake options.

The R6011 by Richmond Wheel and Castor Co. is a rigid frame castor and has a semi pneumatic wheel. This rigid castor is one of our waste bin range and has a top load capacity of 500kg. The R6011 is assembled with plain bearings on the castors axle. The rigid frame of this castor only allows linear movement unless used with swivel castors. The outside diameter of the semi pneumatic wheel is 150mm, the wheel width is 50mm and can be ordered separately (SG608).

Details

  • Material:
    Cast Iron
  • Width:
    50 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 500 Kg - Waste Bin Series
  • Type:
    Fixed
  • Size:
    500 Kg
  • Diameter Outside:
    150 mm (6 inch)
  • Style:
    Zinc Plated
