Richmond - Forged Head Series Rigid Castor

250mm Poly Wheel 1500kg
Stock Code:
R1035
$455.53 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

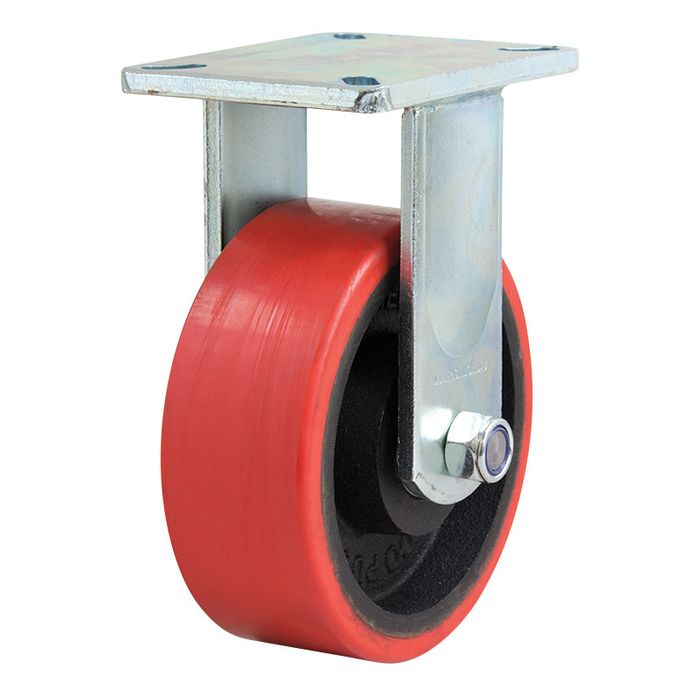

250mm Poly Wheel 1500Kg Capacity Castor (R1035)

Wheel Diameter: 250mm

Castor Frame Type: Rigid

Wheel Width: 75mm

Wheel Type: Polyurethane

Wheel Code: PU1030

Wheel Bearing Type: Ball Bearing

Castor Height: 317mm

Maximum Load Capacity: 1500kg

Applications including transport and logistics, heavy machinery, warehousing equipment and mobile platforms rely on the extreme shock loading, robust durable king pin, drop forged steel baseplate of Richmond’s Forged Head Series for loads up to 1500kg. Truly a great all round castor for those heavy duty applications requiring a towable option, zinc plated for corrosion resistance and the ability to withstand daily abuse that will not compromise performance.

The R1035 from Richmond Wheel and Castor Co. is a rigid frame castor and has a polyurethane wheel. This rigid castor is part of our forged head series range and can safely take loads up to 1500kg. The R1035 wheel is fitted with ball bearings. This castors rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall polyurethane wheel diameter is 250mm, the wheel width is 75mm and you can order separately (Part Number: PU1030).

Details

  • Material:
    Poly - Red / Cast Iron
  • Width:
    75 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 1500 Kg - Forged Head Series
  • Type:
    Fixed
  • Size:
    1500 Kg
  • Diameter Outside:
    250 mm (10 inch)
  • Style:
    Zinc Plated
