Richmond - 300 Series Bolt Swivel Castor

150mm Poly Nylon Wheel 300kg with Brake
Stock Code:
S6226B
$116.01 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

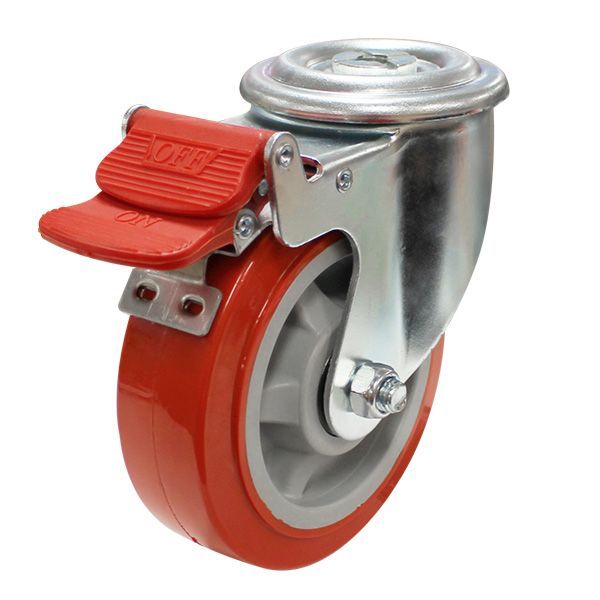

150mm Bolt Hole 300 Series Castor (S6226B)

Wheel Diameter: 150mm

Castor Frame Type: Swivel with Brake

Wheel Width: 50mm

Wheel Type: Nylon

Wheel Code: PU6071

Wheel Bearing Type: Ball Bearing

Castor Height: 181mm

Swivel Radius: 150mm

Bolt Hole Size: 12mm

Maximum Load Capacity: 300kg

Recommended Load Capacity: 250kg

Richmond’s premier industrial bolt hole castor designed with strengthen forks and now a larger rolling diameter suitable for loads up to 300kg, the 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt and the vast wheel combinations available with this series provides endless mobility for industrial environments and trolleys in demanding applications.The S6226B from Richmond Wheel and Castor Co. is a swivel frame castor and has a poly nylon wheel. This swivel castor is part of our 300 series bolt hole range and can hold loads up to 300kg. The S6226B wheel is fitted with ball bearings and is bolt mounted. The swivel frame design of this castor allows full swivel rotation to enable steering. The outside diameter of the poly nylon wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU6071). To order this castor without a brake, search for S6226.

Details

  • Thread Size:
    M12 Hole
  • Material:
    Poly - Red / Nylon
  • Width:
    50 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Bolt Hole - Braked
  • Size:
    300 Kg
  • Diameter Outside:
    150 mm (6 inch)
  • Style:
    Zinc Plated
