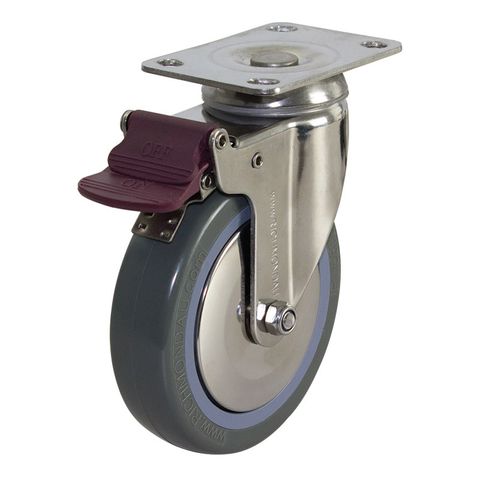

Richmond - Stainless Steel Elite Plate Swivel Cast

125mm Poly Nylon Wheel 100kg with Brake
Stock Code:
S5576B
$114.27 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

125mm Poly Nylon Wheel 100kg Capacity Castor (S5576B)

Wheel Diameter: 125mm

Castor Frame Type: Swivel with Brake

Wheel Width: 27mm

Wheel Type: Polyurethane

Wheel Code: PU5539

Wheel Bearing Type: Stainless Steel Ball Bearing

Castor Height: 161mm

Swivel Radius: 106mm

Maximum Load Capacity: 100kg

Recommended Load Capacity: 80kg

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

The S5576B from Richmond Wheel and Castor Co. is a swivel frame castor and uses a polyurethane wheel. This swivel castor is in our stainless steel elite plate range and has a maximum capacity of 100kg. The S5576B uses stainless steel ball bearings for wheel rotation and is plate mount. The swivel frame design of this castor allows the castor to swivel 360°. The overall polyurethane wheel diameter is 125mm, the wheel width is 27mm and can be ordered separately (PU5539). This model can also be ordered without a brake (Part number S5576).

Details

  • Material:
    Poly - Grey / Nylon
  • Width:
    27 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 100 Kg - Stainless Elite Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    100 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Stainless Steel
