Richmond - Stainless Steel Elite Bolt Swivel Casto

125mm Poly Nylon Wheel 100kg
Stock Code:
S5578
$97.92 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
2 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

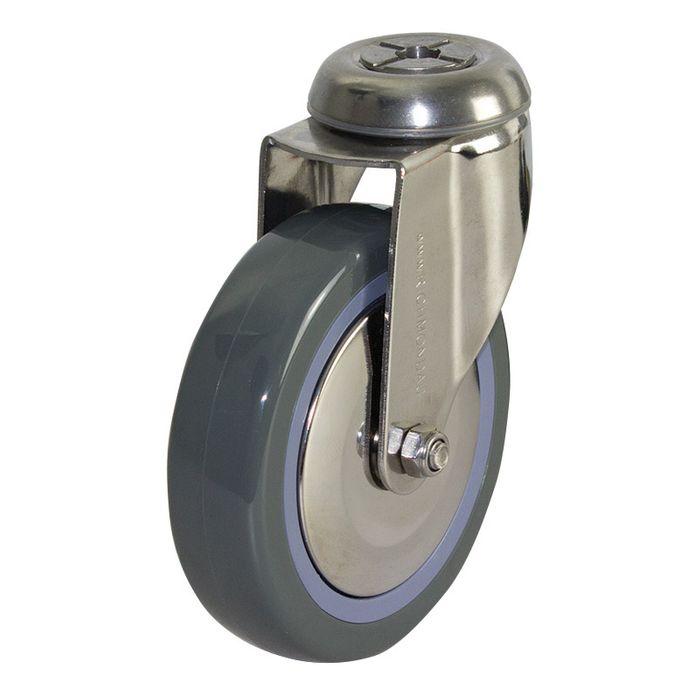

125mm Poly Nylon Wheel 100kg Capacity Castor (S5578)

Wheel Diameter: 125mm

Castor Frame Type: Swivel

Wheel Width: 27mm

Wheel Type: Polyurethane

Wheel Code: PU5539

Wheel Bearing Type: Stainless Steel Ball Bearing

Castor Height: 159mm

Swivel Radius: 102mm

Bolt Hole Size: 12mm



Maximum Load Capacity: 100kg

Recommended Load Capacity: 80kg

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

The S5578 from Richmond is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is part of our stainless steel elite bolt range and has a top load capacity of 100kg. The S5578 uses stainless steel ball bearings for wheel rotation and is mounted with a bolt. The swivel frame of this castor allows full swivel rotation to enable steering. The outside diameter of the polyurethane wheel is 125mm, the wheel width is 27mm and you can order separately (Part Number: PU5539). This model can also be ordered with a brake (part number S5578B).

Details

  • Thread Size:
    M12 Hole
  • Material:
    Poly - Grey / Nylon
  • Width:
    27 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 100 Kg - Stainless Elite Series
  • Type:
    Swivel - Bolt Hole
  • Size:
    100 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Stainless Steel
