Richmond - 500 Series Plate Swivel Castor

200mm Poly Nylon Wheel 400kg
Stock Code:
S8214
$243.39 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

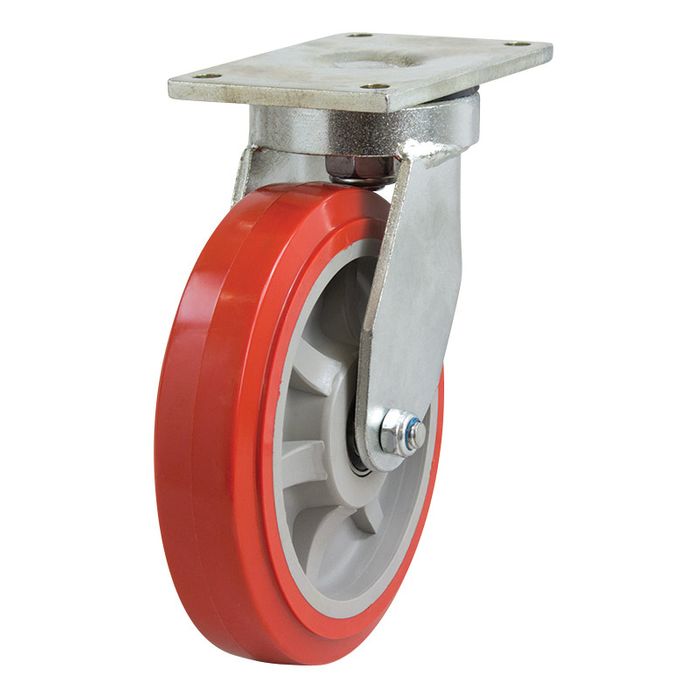

200mm Poly Nylon Wheel 400Kg Capacity Castor (S8214)

Wheel Diameter: 200mm

Castor Frame Type: Swivel

Wheel Width: 50mm

Wheel Type: Polyurethane

Wheel Code: PU8071

Wheel Bearing Type: Ball Bearing

Castor Height: 248mm

Swivel Radius: 155mm

Maximum Load Capacity: 400kg

Recommended Load Capacity: 300kg

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

The S8214 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is in our 500 series range and has a top load capacity of 400kg. The S8214 is assembled with ball bearings on the castors axle. The swivel frame design of this castor allows full swivel rotation to enable steering. The diameter of the polyurethane wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU8071).



Details

  • Thread Size:
    M12 Hole
  • Material:
    Rubber - Blue / Nylon
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Bolt Hole
  • Size:
    400 Kg
  • Diameter Outside:
    200 mm (8 inch)
  • Style:
    Zinc Plated
