Richmond - Stainless Steel Elite Bolt Swivel Casto

100mm Nylon Wheel 100kg
Stock Code:
S4490
$76.76 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

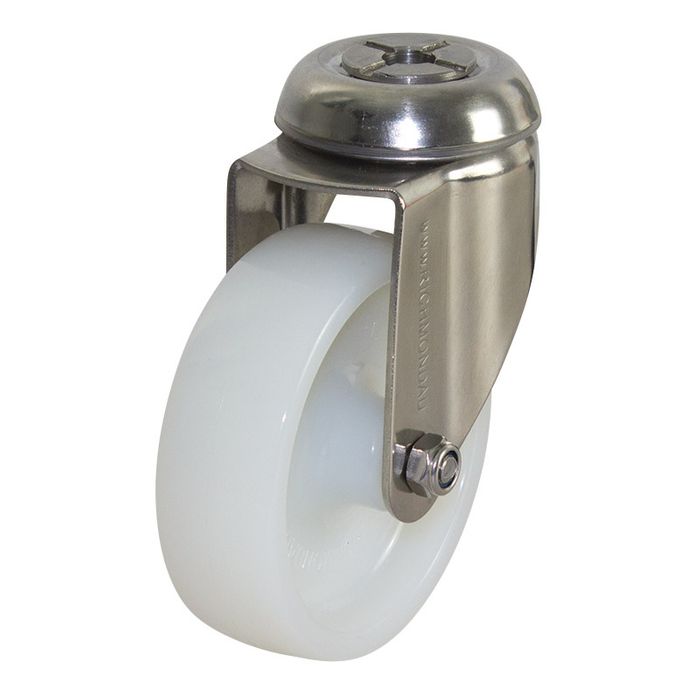

100mm Nylon Wheel 100kg Capacity Castor (S4490)

Wheel Diameter: 100mm

Castor Frame Type: Swivel

Wheel Width: 30mm

Wheel Type: Nylon

Wheel Code: NY4417

Wheel Bearing Type: Plain Bore

Castor Height: 133mm

Swivel Radius: 90mm

Bolt Hole Size: 12mm

Maximum Load Capacity: 100kg

Recommended Load Capacity: 80kg

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

The S4490 from Richmond Wheel and Castor Co. is a swivel frame castor and uses a nylon wheel. This swivel castor is part of our stainless steel elite bolt range and can safely take loads up to 100kg. The S4490 uses plain bearings for wheel rotation and is mounted with a bolt. The swivel frame of this castor permits the load to be steered. The nylon wheel diameter is 100mm, the wheel width is 30mm and can be ordered separately (NY4417). This model can also be ordered with a brake (part number S4490B).

Details

  • Thread Size:
    M12 Hole
  • Material:
    Nylon - White
  • Width:
    30 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 100 Kg - Stainless Elite Series
  • Type:
    Swivel - Bolt Hole
  • Size:
    100 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Stainless Steel
