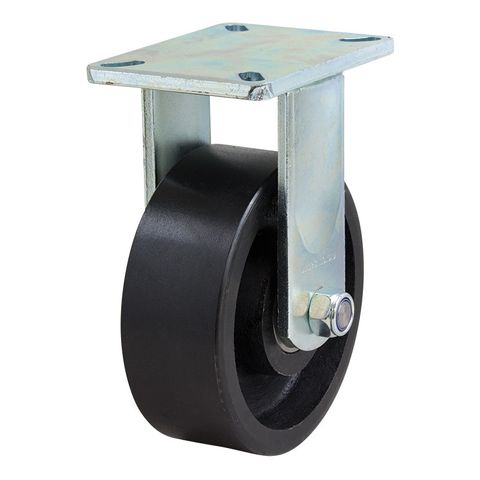

Richmond - Forged Head Series Rigid Castor

200mm SG Iron Wheel 1500kg
Stock Code:
R8001
$471.15 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

200mm SG Iron Wheel 1500Kg Capacity Castor (R8001)

Wheel Diameter: 200mm

Castor Frame Type: Rigid

Wheel Width: 75mm

Wheel Type: Spheroidal Graphite (SG) Iron

Wheel Code: SG822

Wheel Bearing Type: Ball Bearing

Castor Height: 268mm

Maximum Load Capacity: 1500kg

Applications including transport and logistics, heavy machinery, warehousing equipment and mobile platforms rely on the extreme shock loading, robust durable king pin, drop forged steel baseplate of Richmond’s Forged Head Series for loads up to 1500kg. Truly a great all round castor for those heavy duty applications requiring a towable option, zinc plated for corrosion resistance and the ability to withstand daily abuse that will not compromise performance.

The R8001 by Richmond is a rigid frame castor and has a semi pneumatic wheel. This rigid castor is in our forged head series range and has a top load capacity of 1500kg. The R8001 wheel is fitted with ball bearings. The rigid frame allows for steering only when used with swivel castors. The outside diameter of the semi pneumatic wheel is 200mm, the wheel width is 75mm and can be ordered separately (SG822).

Details

  • Material:
    SG Iron
  • Width:
    75 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 1500 Kg - Forged Head Series
  • Type:
    Fixed
  • Size:
    1500 Kg
  • Diameter Outside:
    200 mm (8 inch)
  • Style:
    Zinc Plated
