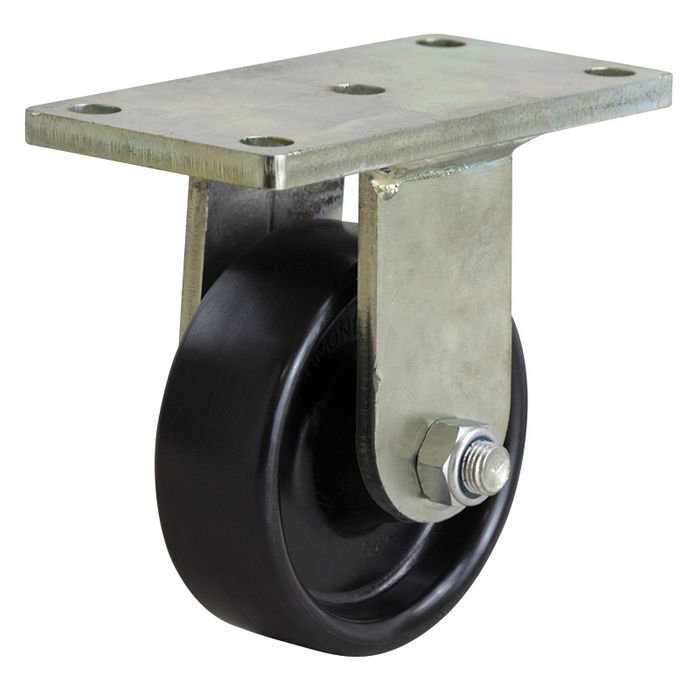

Richmond - Heavy Duty Welded Series Rigid Castor

100mm Nylon Wheel 300kg
Stock Code:
R415
$170.90 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

100mm Reb Poly Wheel 140kg Capacity Castor (R4145)

Wheel Diameter: 100mm

Castor Frame Type: Rigid

Wheel Width: 35mm

Wheel Type: Rebound Polyurethane

Wheel Code: RP4072

Wheel Bearing Type: Stainless Steel Roller Bearing

Castor Height: 133mm

Swivel Radius: 92mm

Maximum Load Capacity: 140kg

Recommended Load Capacity: 100kg

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

The R4145 by Richmond Wheel and Castor Co. is a rigid frame castor and is fitted with a rebound polyurethane wheel. This rigid castor is one of our stainless steel excel plate range and can hold loads up to 140kg. The R4145 is assembled with stainless steel roller bearings on the castors axle and is mounted with the baseplate. The rigid frame of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall rebound polyurethane wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: RP4072).

Details

  • Material:
    Nylon - Black
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 400 Kg - Heavy Duty Welded Series
  • Type:
    Fixed
  • Size:
    300 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
