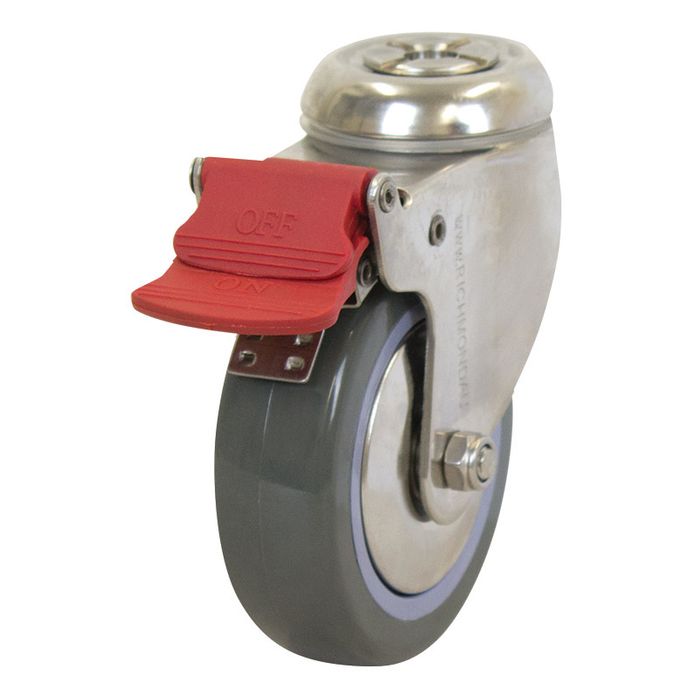

Richmond - Stainless Steel Elite Bolt Swivel Casto

100mm Poly Nylon Wheel 100kg with Brake
Stock Code:
S4478B
$104.96 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

100mm Poly Nylon Wheel 100kg Capacity Castor (S4478B)

Wheel Diameter: 100mm

Castor Frame Type: Swivel with Brake

Wheel Width: 22mm

Wheel Type: Polyurethane

Wheel Code: PU4439

Wheel Bearing Type: Stainless Steel Ball Bearing

Castor Height: 133mm

Swivel Radius: 106mm

Bolt Hole Size: 12mm

 Maximum Load Capacity: 100kg

Recommended Load Capacity: 80kg

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

The S4478B manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and has a polyurethane wheel. This swivel castor is part of our stainless steel elite bolt range and can safely take loads up to 100kg. The S4478B wheel is fitted with stainless steel ball bearings and is bolt mount. The swivel frame of this castor allows the load to be steered. The outside diameter of the polyurethane wheel is 100mm, the wheel width is 27mm and can be ordered separately (PU4439). To order this castor without a brake, search for S4478.

Details

  • Thread Size:
    M12 Hole
  • Material:
    Poly - Grey / Nylon
  • Width:
    22 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 100 Kg - Stainless Elite Series
  • Type:
    Swivel - Bolt Hole - Braked
  • Size:
    100 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Stainless Steel
