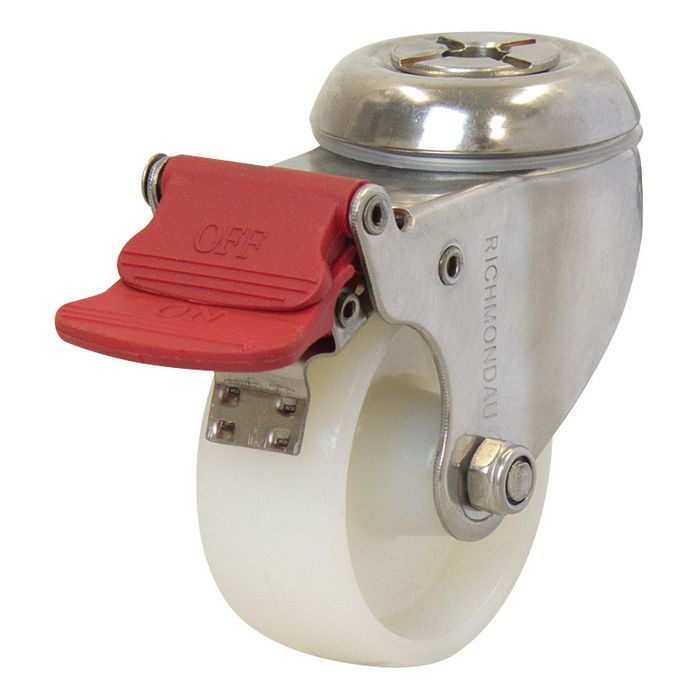

Richmond - Stainless Steel Elite Bolt Castor

75mm Nylon Wheel 80kg with Brake
Stock Code:
S3390B
$89.85 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

75mm Nylon Wheel 80kg Capacity Castor (S3390B)

Wheel Diameter: 75mm

Castor Frame Type: Swivel with Brake

Wheel Width: 30mm

Wheel Type: Nylon

Wheel Code: NY3321

Wheel Bearing Type: Plain Bore

Castor Height: 105mm

Swivel Radius: 105mm

Bolt Hole Size: 12mm

Maximum Load Capacity: 80kg

Recommended Load Capacity: 45kg

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

The S3390B manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and has a nylon wheel. This swivel castor is part of our stainless steel elite bolt range and can safely take loads up to 80kg. The S3390B wheel is fitted with plain bearings and is bolt mounted. The swivel frame allows for full 360° swivel rotation. The overall nylon wheel diameter is 75mm, the wheel width is 30mm and can be ordered separately (NY3321). For the same castor without a brake, see S3390.

Details

  • Thread Size:
    M12 Hole
  • Material:
    Nylon - White
  • Width:
    30 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 100 Kg - Stainless Elite Series
  • Type:
    Swivel - Bolt Hole - Braked
  • Size:
    80 Kg
  • Diameter Outside:
    75 mm (3 inch)
  • Style:
    Stainless Steel
