Richmond - Heavy Industrial Swivel Castor

100mm Cast Iron Wheel 400kg
Stock Code:
S470
$353.36 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

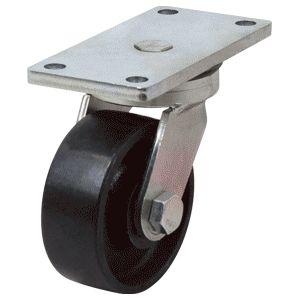

100mm Cast Iron Wheel 400Kg Capacity Castor (S470)

Wheel Diameter: 100mm

Castor Frame Type: Swivel

Wheel Width: 38mm

Wheel Type: Cast Iron

Wheel Code: Ci400

Wheel Bearing Type: Ball Bearing

Castor Height: 132mm

Swivel Radius: 90mm

Maximum Load Capacity: 400kg

Recommended Load Capacity: 300kg

Precision built for durability under extreme working conditions, the Heavy Duty Welded Series is ideal for the exhaustive demands of industrial environments when a low profile high load bearing castor is required. Featuring a precision machined swivel ball race provides an unrivalled ultra smooth swivel action and a king pin made of high tensile steel to withstand high side impact loads. Finished in an attractive zinc plating to provide corrosion resistance, Richmond can also supply the heavy duty welded series in stainless steel for sue in high corrosive environments.

The S470 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a cast iron wheel. This swivel castor is part of our heavy duty welded series range and has a maximum capacity of 400kg. The S470 is assembled with ball bearings on the castors axle. The swivel frame of this castor allows for full 360° swivel rotation. The overall cast iron wheel diameter is 100mm, the wheel width is 38mm and can be ordered separately (Ci400).

Details

  • Material:
    Cast Iron
  • Width:
    38 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 400 Kg - Heavy Duty Welded Series
  • Type:
    Swivel - Plate
  • Size:
    400 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
