Richmond - Light Industrial Series Plate Swivel Ca

75mm Inst Rubber Wheel 80kg
Stock Code:
S3312
$32.71 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

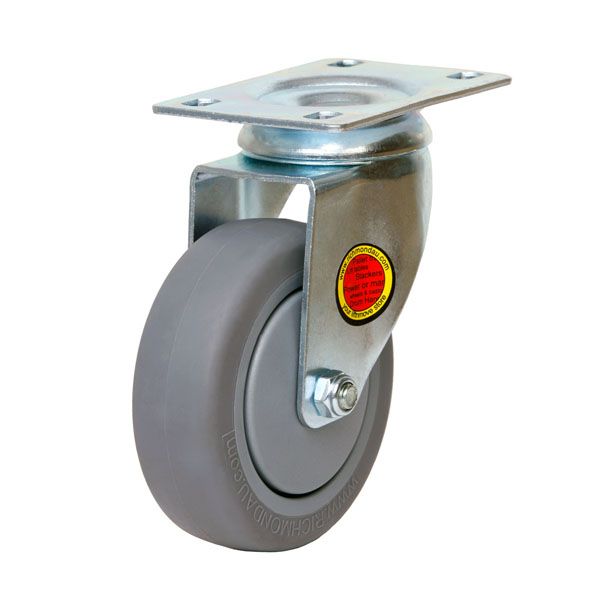

75mm Inst Rubber Wheel 80kg Capacity Castor (S3312)

Wheel Diameter: 75mm

Castor Frame Type: Swivel

Wheel Width: 32mm

Wheel Type: Institutional Rubber

Wheel Code: iR3008

Wheel Bearing Type: Ball Bearing

Castor Height: 108mm

Swivel Radius: 71mm

Load Capacity: 80kg

Available with a large range of wheels each designed to suit varied floor surfaces, application and load requirements – Richmond’s Light Industrial Series castors are ideal for use on mobile equipment, hospital equipment, nurseries, shops and general industry. The light industrial series is the castor of choice or green grocers and market stalls for produce bins as it provides an economical hard wearing reliable castor. Combining a zinc plated corrosion resistant frame and a robust twin race swivel ensures a long and productive life.

The S3312 by Richmond Wheel and Castor Co. is a swivel frame castor and uses a institutional rubber wheel. This swivel castor is in our light industrial series range and can safely take loads up to 80kg. The S3312 is assembled with ball bearings on the castors axle. The swivel frame permits the load to be steered. The diameter of the institutional rubber wheel is 75mm, the wheel width is 32mm and can be ordered separately (iR3008). To order this castor with a brake, search for S3312B.

Details

  • Material:
    Rubber - Grey / Nylon
  • Width:
    32 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 125 Kg - Light Industrial Series
  • Type:
    Swivel - Plate
  • Size:
    80 Kg
  • Diameter Outside:
    75 mm (3 inch)
  • Style:
    Zinc Plated
