Richmond - Utility Series Plate Rigid Castor

100mm Nylon Wheel 70kg
Stock Code:
R4717
$17.38 incl GST

Stock Locations

  • Ballarat:
    9 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

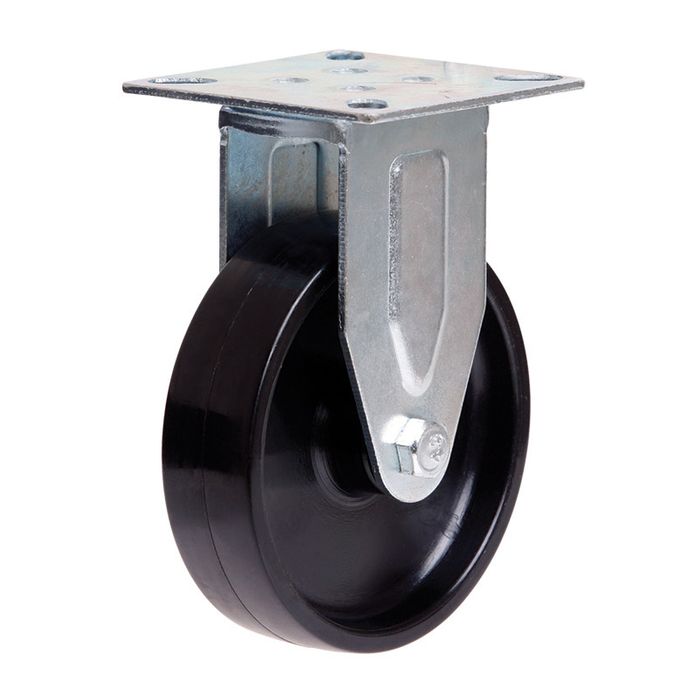

100mm Nylon Wheel 70kg Capacity Castor (R4717)

Wheel Diameter: 100mm

Castor Frame Type: Rigid

Wheel Width: 25mm

Wheel Type: Nylon

Wheel Code: NY4415

Wheel Bearing Type: Plain Bore

Castor Height: 134mm

Maximum Load Capacity: 70kg

Recommended Load Capacity: 60kg

Plate mounted, Richmond’s Utility Castor has endless light duty applications including wire baskets, display equipment and light trolley applications. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish. Together with the choice of nylon or grey non-marking wheels, this castor is truly a utility by name and nature , a must have for all small fabricating, retailers and home handy man purposes.



The R4717 by Richmond is a rigid frame castor and features a nylon wheel. This rigid castor is one of our utility series range and has a top load capacity of 70kg. The R4717 is assembled with plain bearings on the castors axle. The rigid frame design of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The overall nylon wheel diameter is 100mm, the wheel width is 25mm and you can order separately (Part Number: NY4415).

Details

  • Material:
    Nylon - Black
  • Width:
    25 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 70 Kg - Utility Series
  • Type:
    Fixed
  • Size:
    70 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
