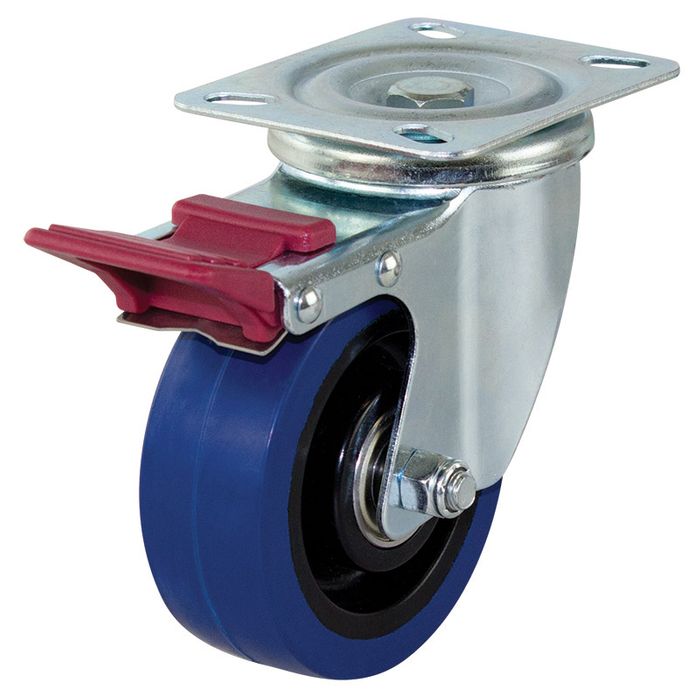

Richmond - 300 Series Plate Swivel Castor

100mm Reb Rubber Wheel 150kg with Brake
Stock Code:
S4042B
$60.17 incl GST

Stock Locations

  • Ballarat:
    13 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

100mm Reb Rubber Wheel 150kg Capacity Castor (S4042B)

Wheel Diameter: 100mm

Castor Frame Type: Swivel with Brake

Wheel Width: 35mm

Wheel Type: Rebound Rubber

Wheel Code: RR4077

Wheel Bearing Type: Ball Bearing

Castor Height: 130mm

Swivel Radius: 125mm

Maximum Load Capacity: 150kg

Recommended Load Capacity: 110kg

Meeting and exceeding all performance standards due to a higher load bearing capacity the 300 Series has a wide range of uses.A sturdy pressed metal castor with a variety of wheel options, Richmond can help identify the correct wheel for your application and environment. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases, transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series

The S4042B from Richmond Wheel and Castor Co. is a swivel frame castor and features a rebound rubber wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 150kg. The S4042B wheel is fitted with ball bearings and is mounted with the baseplate. The swivel frame of this castor allows the castor to swivel 360°. The overall rebound rubber wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (RR4077). For the same castor without a brake, see S4042.

Details

  • Material:
    Rubber - Blue / Nylon
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    150 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
