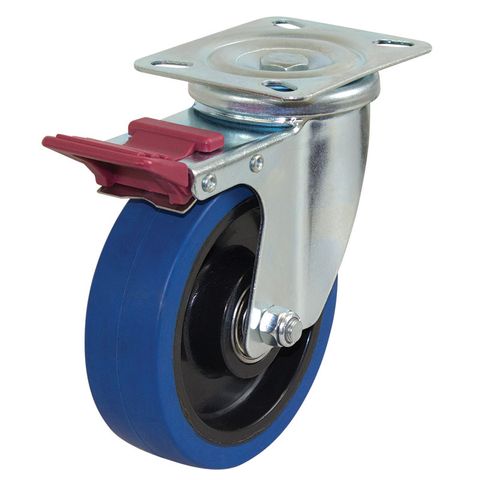

Richmond - 300 Series Plate Swivel Castor

125mm Reb Rubber Wheel 200kg with Brake
Stock Code:
S5042B
$81.29 incl GST

Stock Locations

  • Ballarat:
    8 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

125mm Reb Rubber Wheel 200kg Capacity Castor (S5042B)

Wheel Diameter: 125mm

Castor Frame Type: Swivel with Brake

Wheel Width: 35mm

Wheel Type: Rebound Rubber

Wheel Code: RR5077

Wheel Bearing Type: Ball Bearing

Castor Height: 157mm

Swivel Radius: 125mm

Maximum Load Capacity: 200kg

Recommended Load Capacity: 150kg

Meeting and exceeding all performance standards due to a higher load bearing capacity the 300 Series has a wide range of uses.A sturdy pressed metal castor with a variety of wheel options, Richmond can help identify the correct wheel for your application and environment. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases, transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series

The S5042B by Richmond Wheel and Castor Co. is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 200kg. The S5042B is assembled with ball bearings on the castors axle and is plate mount. This castors swivel frame permits the load to be steered. The overall rebound rubber wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: RR5077). For the same castor without a brake, see S5042.

Details

  • Material:
    Rubber - Blue / Nylon
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    200 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Zinc Plated
