Richmond - Heavy Industrial Swivel Castor

125mm Cast Iron Wheel 380kg
Stock Code:
S5550
$80.54 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

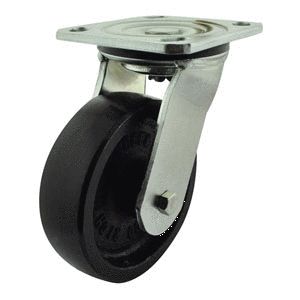

125mm Cast Iron Wheel 380kg Capacity Castor (S5550)

Wheel Diameter: 125mm

Wheel Width: 38mm

Wheel Type: Cast Iron

Wheel Code: Ci532

Wheel Bearing Type: Plain Bore

Castor Height: 165mm

Swivel Radius: 100mm

Maximum Load Capacity: 380kg

Recommended Load Capacity: 280kg

Richmond Heavy Industrial Series castor has been developed to meet the exacting demands of customers wanting castors capable of being transported long distances. Logistics, manufacturing, display and exhibition services are just some of the common businesses relying on our heavy industrial series castors daily. Zinc plated to provide corrosion resistance, a grease nipple to maintain smooth operation and an industry leading swivel lock and brake design all combined with a 6mm baseplate thickness and welded forks that provide uncompromised strength and resistance to flexing.

Our 125mm Cast Iron Wheel Richmond Castor – S5550 is one of the castors in our extensive series of heavy industrial castors. The wheel is supplied with a Plain Bearing and the diameter of the wheel is 125mm (5″). To view the Cast Iron wheel click here. This heavy industrial castor has a load capacity of 380kg. The swivel frame allows full360° rotation of the castor. Cast Iron wheels have the lowest rolling resistance of all of Richmonds castors however they are not suitable for some surfaces as damage could occur over time.

Details

  • Material:
    Cast Iron
  • Width:
    38 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 500 Kg - Heavy Industrial Series
  • Type:
    Swivel - Plate
  • Size:
    380 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Zinc Plated
