Richmond - 300 Series Plate Swivel Castor

150mm Reb Rubber Wheel 225kg
Stock Code:
S6042
$88.59 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

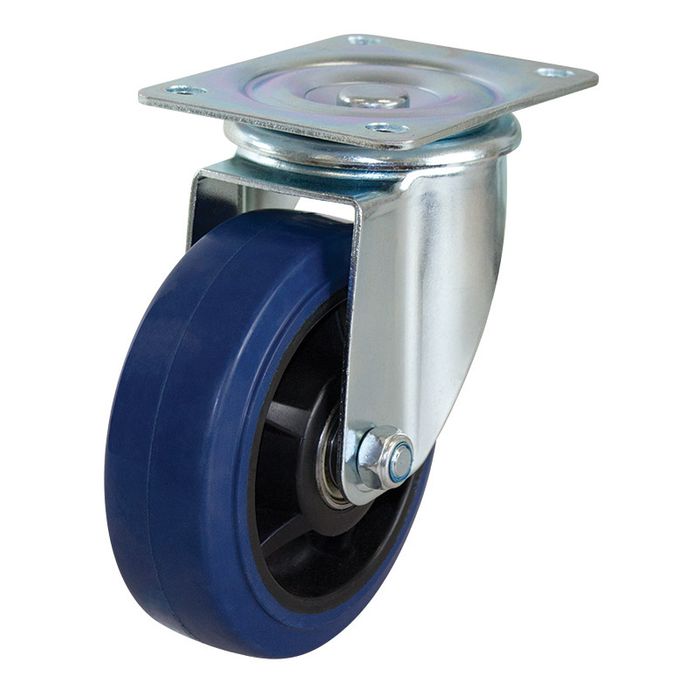

150mm Reb Rubber Wheel 225kg Capacity Castor (S6042)

Wheel Diameter: 150mm

Castor Frame Type: Swivel

Wheel Width: 45mm

Wheel Type: Rebound Rubber

Wheel Code: RR6677

Wheel Bearing Type: Ball Bearing

Castor Height: 187mm

Swivel Radius: 127mm

Maximum Load Capacity: 225kg

Recommended Load Capacity: 200kg

Meeting and exceeding all performance standards due to a higher load bearing capacity the 300 Series has a wide range of uses.A sturdy pressed metal castor with a variety of wheel options, Richmond can help identify the correct wheel for your application and environment. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases, transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series

The S6042 by Richmond Wheel and Castor Co. is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is part of our 300 series plate range and has a top load capacity of 225kg. The S6042 uses ball bearings for wheel rotation and is mounted with the baseplate. This castors swivel frame allows the castor to swivel 360°. The outside diameter of the rebound rubber wheel is 150mm, the wheel width is 45mm and can be ordered separately (RR6677). This model can also be ordered with a brake (part number S6042B).

Details

  • Material:
    Rubber - Blue / Nylon
  • Width:
    45 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Plate
  • Size:
    225 Kg
  • Diameter Outside:
    150 mm (6 inch)
  • Style:
    Zinc Plated
