Richmond - 300 Series Plate Swivel Castor

100mm Nylon Wheel 200kg
Stock Code:
S4032
$57.13 incl GST

Stock Locations

  • Ballarat:
    12 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

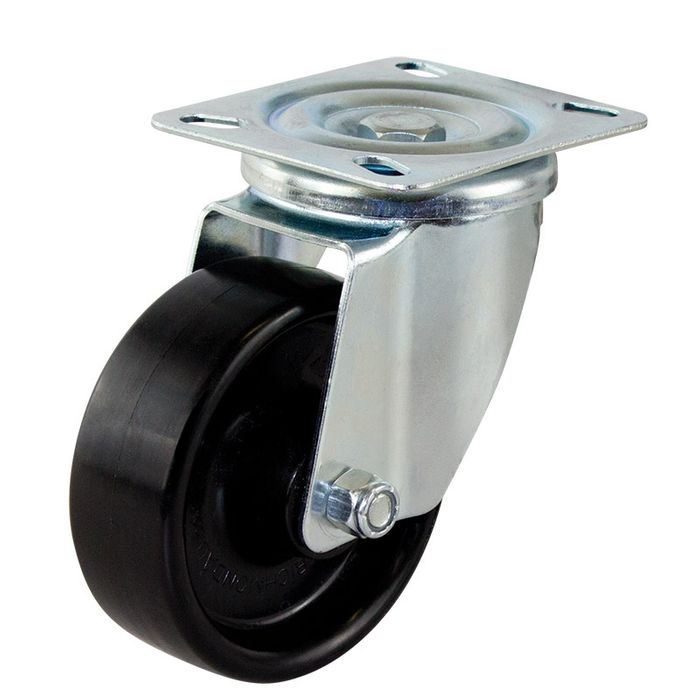

100mm Nylon Wheel 200kg Capacity Castor (S4032)

Wheel Diameter: 100mm

Castor Frame Type: Swivel

Wheel Width: 35mm

Wheel Type: Nylon

Wheel Code: NY401

Wheel Bearing Type: Plain Bore

Castor Height: 130mm

Swivel Radius: 90mm

Maximum Load Capacity: 200kg

Recommended Load Capacity: 150kg

Meeting and exceeding all performance standards due to a higher load bearing capacity the 300 Series has a wide range of uses.A sturdy pressed metal castor with a variety of wheel options, Richmond can help identify the correct wheel for your application and environment. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases, transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series

The S4032 from Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is in our 300 series plate range and can hold loads up to 200kg. The S4032 wheel is fitted with plain bearings and is baseplate mount. The swivel frame of this castor allows full swivel rotation to enable steering. The overall nylon wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: NY401). To order this castor with a brake, search for S4032B.

Details

  • Material:
    Nylon - Black
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Plate
  • Size:
    200 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
