Richmond - Stainless Steel Plate Plate Swivel Cast

100mm Nylon Wheel 200kg
Stock Code:
S4142
$72.49 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

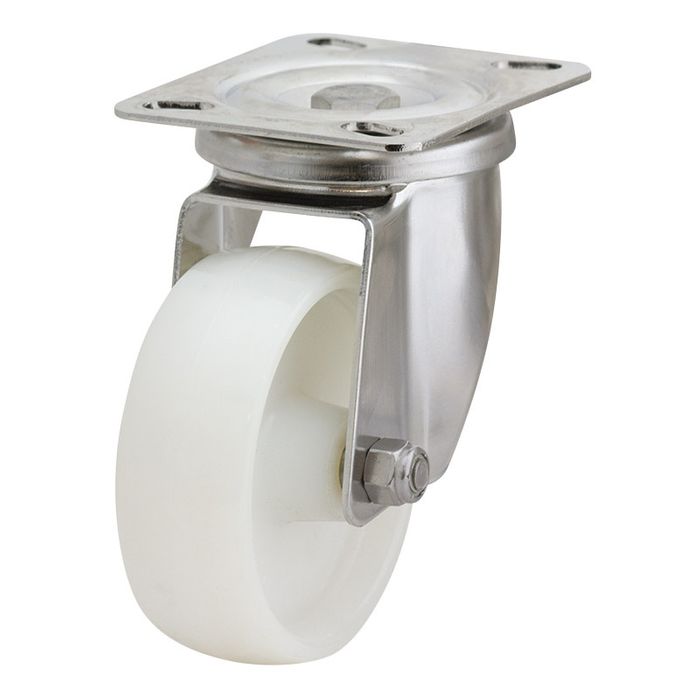

100mm Nylon Wheel 200kg Capacity Castor (S4142)

Wheel Diameter: 100mm

Castor Frame Type: Swivel

Wheel Width: 35mm

Wheel Type: Nylon

Wheel Code: NY401

Wheel Bearing Type: Plain Bore

Castor Height: 133mm

Swivel Radius: 92mm

Maximum Load Capacity: 200kg

Recommended Load Capacity: 150kg

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

The S4142 from Richmond Wheel and Castor Co. is a swivel frame castor and uses a nylon wheel. This swivel castor is one of our stainless steel excel plate range and has a top load capacity of 200kg. The S4142 uses plain bearings for wheel rotation and is plate mount. The swivel frame of this castor allows full swivel rotation to enable steering. The diameter of the nylon wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: NY401). This model can also be ordered with a brake (part number S4142B).

Details

  • Material:
    Nylon - White
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 400 Kg - Stainless Excel Series
  • Type:
    Swivel - Plate
  • Size:
    200 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Stainless Steel
