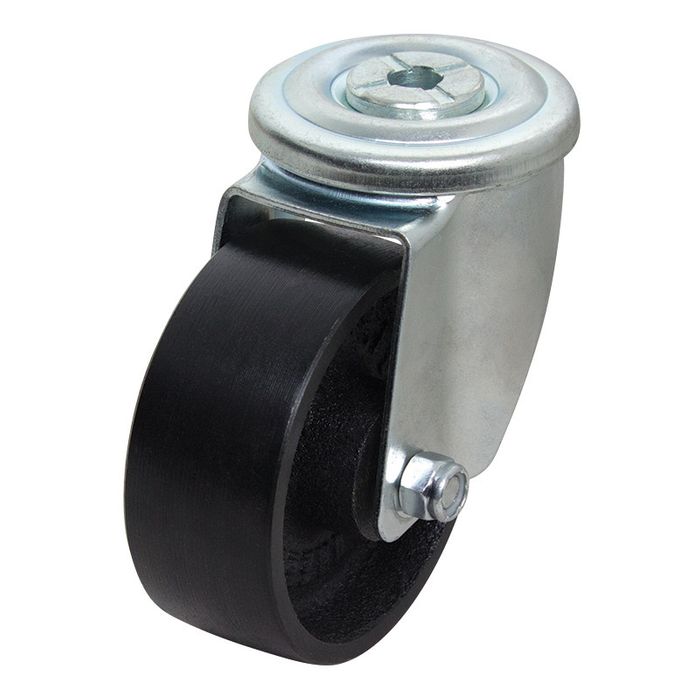

Richmond - 300 Series Bolt Hole Swivel Castor

100mm Cast Iron Wheel 150/200kg
Stock Code:
S4234
$66.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

100mm Bolt Hole 300 Series Castor (S4234)

Wheel Diameter: 100mm

Castor Frame Type: Swivel

Wheel Width: 38mm

Wheel Type: Cast Iron

Wheel Code: Ci421

Wheel Bearing Type: Plain Bore

Castor Height: 130mm

Swivel Radius: 90mm

Bolt Hole Size: 12mm



Maximum Load Capacity: 200kg

Recommended Load Capacity: 150kg

Richmond’s premier industrial bolt hole castor designed with strengthen forks and now a larger rolling diameter suitable for loads up to 300kg, the 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt and the vast wheel combinations available with this series provides endless mobility for industrial environments and trolleys in demanding applications.

The S4234 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and uses a cast iron wheel. This swivel castor is one of our 300 series bolt hole range and has a top load capacity of 200kg. The S4234 uses plain bearings for wheel rotation and is bolt mount. This castors swivel frame allows full swivel rotation to enable steering. The overall cast iron wheel diameter is 100mm, the wheel width is 38mm and can be ordered separately (Ci421). For the same castor with a brake, see S4234B.

Details

  • Thread Size:
    M12 Hole
  • Material:
    Cast Iron
  • Width:
    38 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Bolt Hole
  • Size:
    200 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
