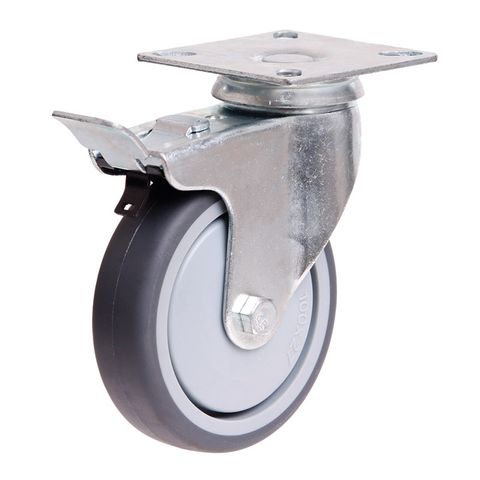

Richmond - Utility Series Plate Swivel Castor

100mm Rubber Wheel 70kg with Brake
Stock Code:
S4710B
$24.93 incl GST

Stock Locations

  • Ballarat:
    11 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

100mm Rubber Wheel 70kg Capacity Castor (S4710B)

Wheel Diameter: 100mm

Castor Frame Type: Swivel with Brake

Wheel Width: 25mm

Wheel Type: Institutional Rubber

Wheel Code: IR4401

Wheel Bearing Type: Ball Bearing

Castor Height: 134mm

Swivel Radius: 100mm

Maximum Load Capacity: 70kg

Recommended Load Capacity: 60kg

Plate mounted, Richmond’s Utility Castor has endless light duty applications including wire baskets, display equipment and light trolley applications. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish. Together with the choice of nylon or grey non-marking wheels, this castor is truly a utility by name and nature , a must have for all small fabricating, retailers and home handy man purposes.



The S4710B from Richmond is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is part of our utility series range and can hold loads up to 70kg. The S4710B uses ball bearings for wheel rotation. This castors swivel frame allows full swivel rotation to enable steering. The diameter of the institutional rubber wheel is 100mm, the wheel width is 25mm and can be ordered separately (IR4401). For the same castor without a brake, see S4710.

Details

  • Material:
    Rubber - Grey / Nylon
  • Width:
    25 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 70 Kg - Utility Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    70 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
