Richmond - Chrome Durolite Bolt Swivel Castor

100mm Inst Rubber Wheel 80kg
Stock Code:
S4480
$57.13 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

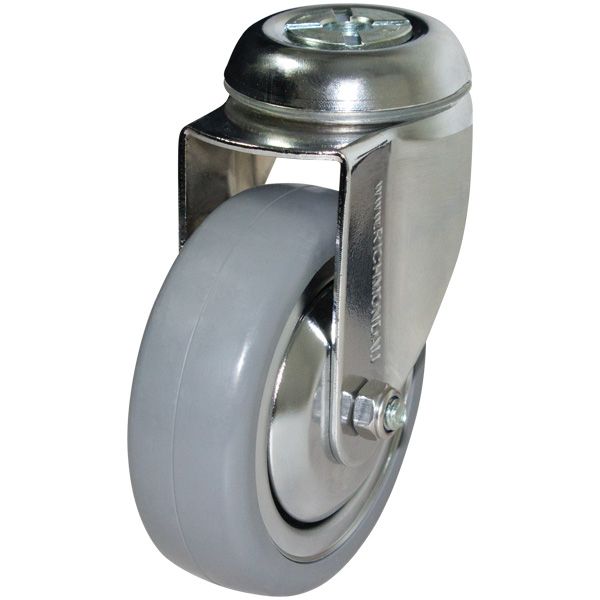

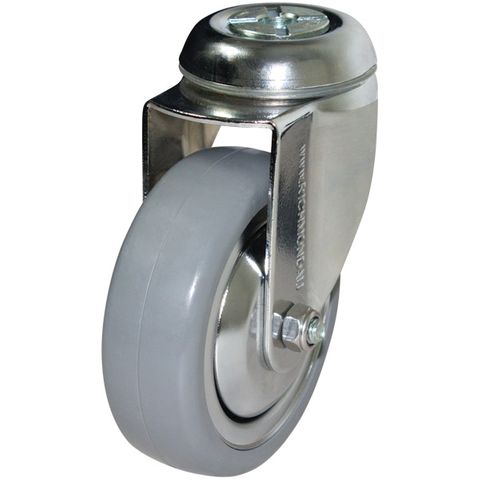

100mm Swivel Chrome Durolite Castor (S4480)

Wheel Diameter: 100mm

Castor Frame Type: Swivel

Wheel Width: 32mm

Wheel Type: Institutional Rubber

Wheel Code: iR4004

Wheel Bearing Type: Ball Bearing

Castor Height: 133mm

Swivel Radius: 90mm

Bolt Hole Size: 12mm

Load Capacity: 80kg

A high quality polished chrome finish makes this castor ideal for use in hospitals, institutions, nursing homes and an attractive edition to furniture and retail displays. With all the features of the plate type castor, the bolt castor has the ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt a robust twin swivel race action providing durability.

The S4480 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is part of our chrome durolite bolt range and can safely take loads up to 100kg. The S4480 is assembled with ball bearings on the castors axle and is mounted with a bolt. This castors swivel frame allows full swivel rotation to enable steering. The overall institutional rubber wheel diameter is 100mm, the wheel width is 32mm and you can order separately (Part Number: iR4004).

Details

  • Thread Size:
    M12 Hole
  • Material:
    Rubber - Grey / Nylon
  • Width:
    32 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 125 Kg - Chrome Durolite Series
  • Type:
    Swivel - Bolt Hole
  • Size:
    80 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Chrome Plated
