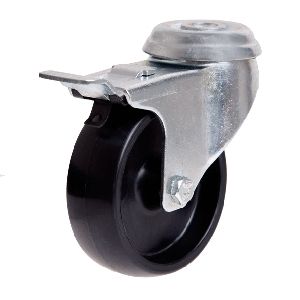

Richmond - Utility Series Bolt Swivel Castor

100mm Nylon Wheel 70kg with Brake
Stock Code:
S4712B
$31.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

100mm Nylon Wheel 70kg Capacity Castor (S4712B)

Wheel Diameter: 100mm

Castor Frame Type: Swivel with Brake

Wheel Width: 25mm

Wheel Type: Nylon

Wheel Code: NY4415

Wheel Bearing Type: Plain Bore

Castor Height: 131mm

Swivel Radius: 100mm

Bolt Hole Size: 10mm



Maximum Load Capacity: 70kg

Recommended Load Capacity: 60kg

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.



The S4712B by Richmond is a swivel frame castor and features a nylon wheel. This swivel castor is one of our utility series range and can hold loads up to 70kg. The S4712B uses plain bearings for wheel rotation. The swivel frame allows the load to be steered. The diameter of the nylon wheel is 100mm, the wheel width is 25mm and can be ordered separately (NY4415). To order this castor without a brake, search for S4712.

Details

  • Thread Size:
    M10 Hole
  • Material:
    Nylon - Black
  • Width:
    25 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 70 Kg - Utility Series
  • Type:
    Swivel - Bolt Hole - Braked
  • Size:
    70 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
