Richmond - 300 Series Plate Swivel Castor

125mm Nylon Wheel 200kg
Stock Code:
S5032
$58.12 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

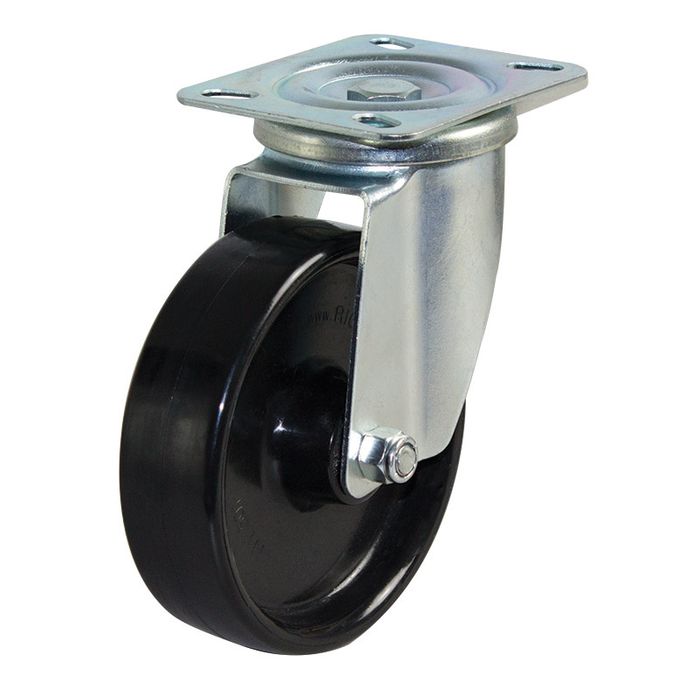

125mm Nylon Wheel 200kg Capacity Castor (S5032)

Wheel Diameter: 125mm

Castor Frame Type: Swivel

Wheel Width: 35mm

Wheel Type: Nylon

Wheel Code: NY501

Wheel Bearing Type: Plain Bore

Castor Height: 157mm

Swivel Radius: 112mm

Maximum Load Capacity: 200kg

Recommended Load Capacity: 150kg

Meeting and exceeding all performance standards due to a higher load bearing capacity the 300 Series has a wide range of uses.A sturdy pressed metal castor with a variety of wheel options, Richmond can help identify the correct wheel for your application and environment. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases, transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series

The S5032 from Richmond is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is part of our 300 series plate range and has a top load capacity of 200kg. The S5032 uses plain bearings for wheel rotation and is baseplate mount. The swivel frame of this castor permits the load to be steered. The diameter of the nylon wheel is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY501). To order this castor with a brake, search for S5032B.

Details

  • Material:
    Nylon - Black
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Plate
  • Size:
    200 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Zinc Plated
