Richmond - Stainless Steel Excel Plate Swivel Cast

125mm Reb Poly Wheel 180kg
Stock Code:
S5144
$106.22 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

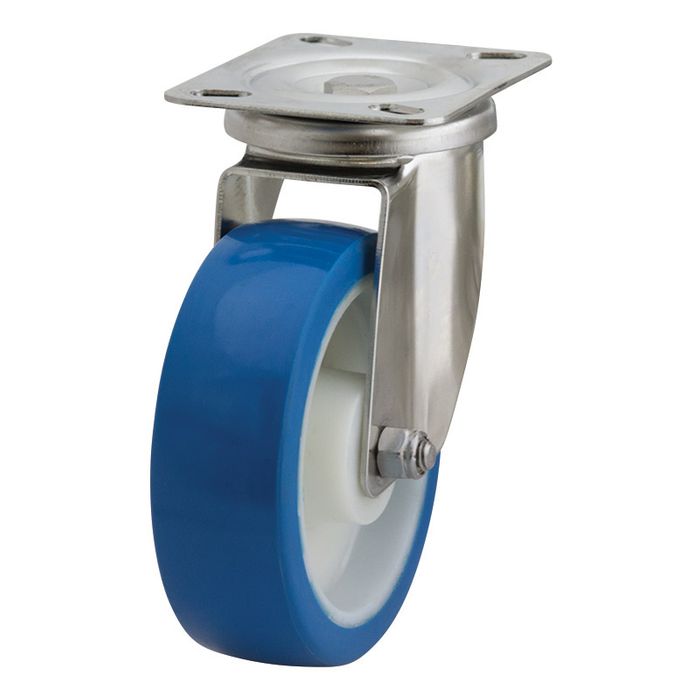

125mm Reb Poly Wheel 180kg Capacity Castor (S5144)

Wheel Diameter: 125mm

Castor Frame Type: Swivel

Wheel Width: 35mm

Wheel Type: Rebound Polyurethane

Wheel Code: RP5072

Wheel Bearing Type: Stainless Steel Roller Bearing

Castor Height: 158mm

Swivel Radius: 112mm

Maximum Load Capacity: 180kg

Recommended Load Capacity: 150kg

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

The S5144 from Richmond is a swivel frame castor and has a rebound polyurethane wheel. This swivel castor is in our stainless steel excel plate range and has a top load capacity of 180kg. The S5144 uses stainless steel roller bearings for wheel rotation and is plate mount. The swivel frame of this castor permits the load to be steered. The outside diameter of the rebound polyurethane wheel is 125mm, the wheel width is 35mm and can be ordered separately (RP5072). To order this castor with a brake, search for S5144B.

Details

  • Material:
    Poly - Blue / Nylon
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 400 Kg - Stainless Excel Series
  • Type:
    Swivel - Plate
  • Size:
    180 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Stainless Steel
