Richmond - Stainless Steel Excel Plate Swivel Cast

125mm Reb Poly Wheel 180kg with Brake
Stock Code:
S5144B
$119.79 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

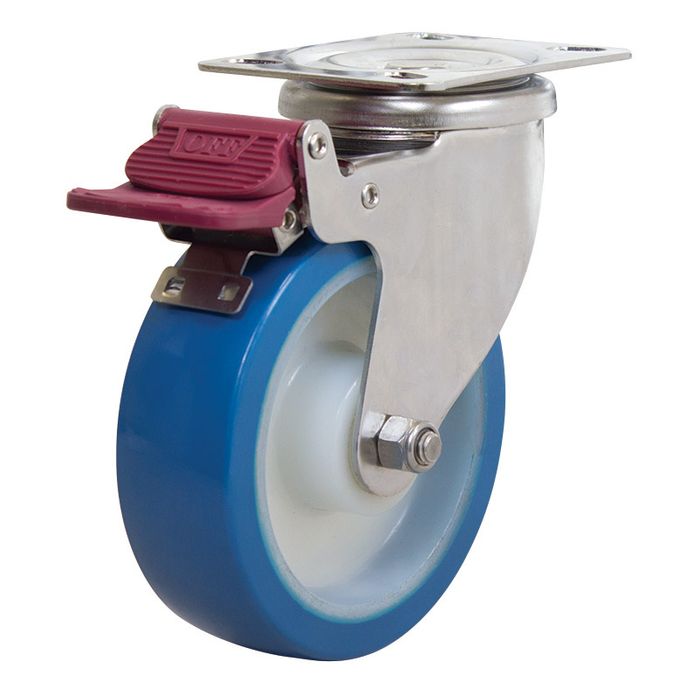

125mm Reb Poly Wheel 180kg Capacity Castor (S5144B)

Wheel Diameter: 125mm

Castor Frame Type: Swivel with Brake

Wheel Width: 35mm

Wheel Type: Rebound Polyurethane

Wheel Code: RP5072

Wheel Bearing Type: Stainless Steel Roller Bearing

Castor Height: 158mm

Swivel Radius: 120mm

Maximum Load Capacity: 180kg

Recommended Load Capacity: 151kg

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

The S5144B by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a rebound polyurethane wheel. This swivel castor is in our stainless steel excel plate range and has a maximum capacity of 180kg. The S5144B wheel is fitted with stainless steel roller bearings and is plate mount. The swivel frame permits the load to be steered. The overall rebound polyurethane wheel diameter is 125mm, the wheel width is 35mm and can be ordered separately (RP5072). For the same castor without a brake, see S5144.

Details

  • Material:
    Poly - Blue / Nylon
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 400 Kg - Stainless Excel Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    180 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Stainless Steel
